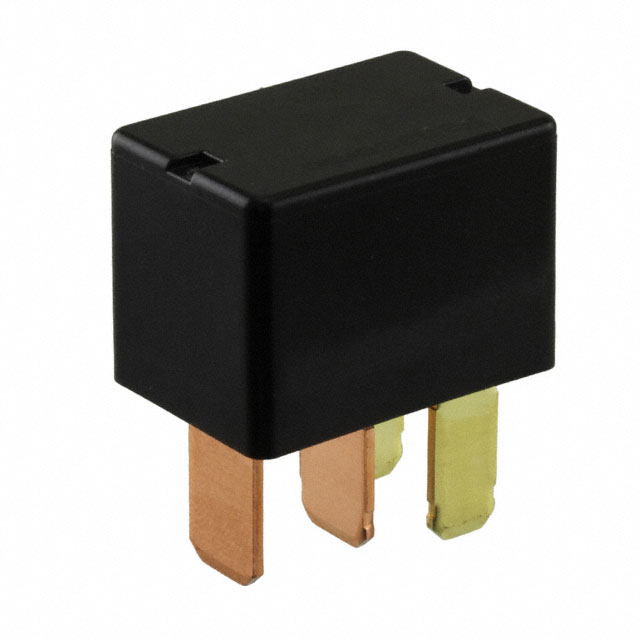

ACVN51212
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPST 35A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACVN51212
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPST 35A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACVN51212 |
|---|---|
| Coil Current | 66.7 mA |
| Coil Power | 800 mW |
| Coil Resistance | 180 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 35 A |
| Features | Sealed - Fully |
| Mounting Type | Socketable |
| Must Operate Voltage | 7 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 14 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.44 | |
| 10 | $ 3.88 | |||
| 25 | $ 3.67 | |||
| 50 | $ 3.53 | |||
| 100 | $ 3.38 | |||
| 250 | $ 3.21 | |||
| 500 | $ 3.08 | |||
| 1000 | $ 2.96 | |||
Description
General part information
ACVN51 Series
RELAY AUTOMOTIVE SPST 35A 12V
