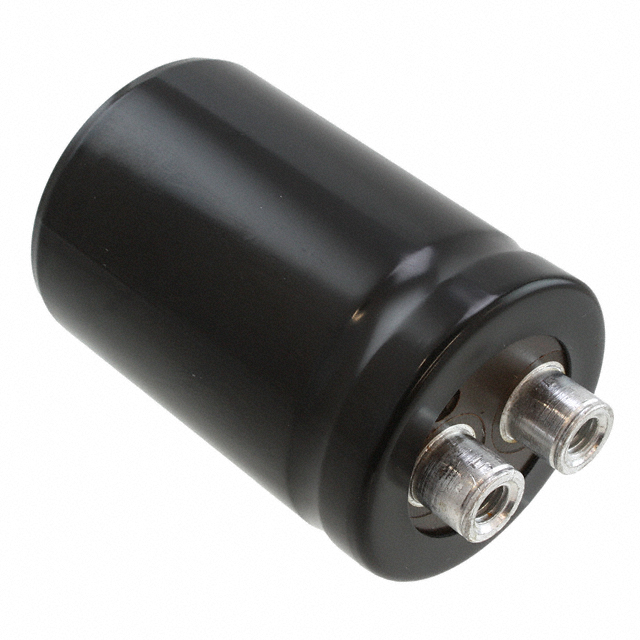

ALS30A221DA400

Active

KEMET

CAP ALUM 220UF 20% 400V SCREW CH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 220UF 20% 400V SCREW CH

Technical Specifications

Parameters and characteristics for this part

Specification	ALS30A221DA400

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	570 mOhm
Height - Seated (Max) [Max] [z]	2.126 in
Height - Seated (Max) [Max] [z]	54 mm
Impedance	387 mOhms
Lead Spacing	0.504 in
Lead Spacing	12.8 mm
Lifetime @ Temp.	11000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ High Frequency	4.4 A
Ripple Current @ Low Frequency	2.1 A
Size / Dimension [diameter]	1.417 in
Size / Dimension [diameter]	36 mm
Tolerance	20 %
Voltage - Rated	400 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Capacitance	Polarization	Package / Case	Impedance	Ripple Current @ High Frequency	Mounting Type	Lifetime @ Temp.	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Applications
KEMET ALS30A221DA400	85 °C	-40 °C	400 V	220 µF	Polar	Radial Can - Screw Terminals	387 mOhms	4.4 A	Chassis Mount	11000 Hrs	2.1 A	570 mOhm	0.504 in	12.8 mm	2.126 in	54 mm	1.417 in	36 mm	20 %	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 570mOhm @ 100Hz 11000 Hrs @ 85°C
