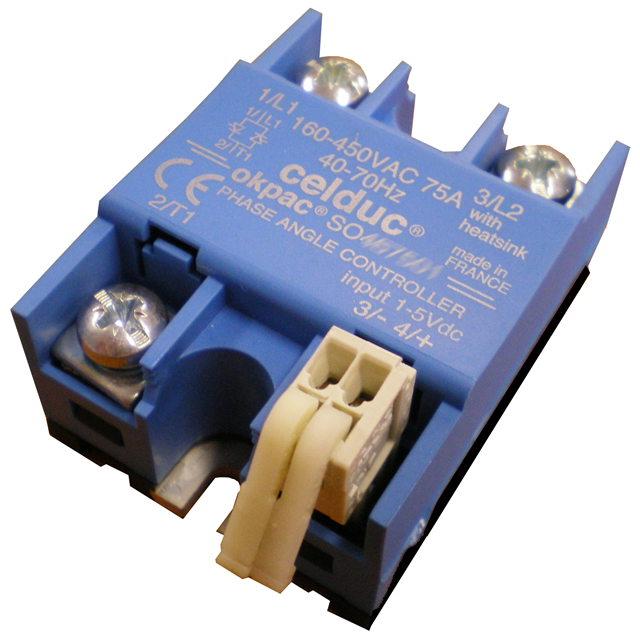

SO367001
ActiveCelduc Inc.
SSR RELAY SPST-NO 75A 160-450V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SO367001
ActiveCelduc Inc.
SSR RELAY SPST-NO 75A 160-450V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SO367001 |
|---|---|
| Approval Agency | CE |
| Load Current | 75 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 4.8 mOhms |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 10 VDC |
| Voltage - Load [Max] | 450 V |
| Voltage - Load [Min] | 160 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2 | $ 234.03 | |
Description
General part information
SO3670 Series
Solid State SPST-NO (1 Form A) Module
