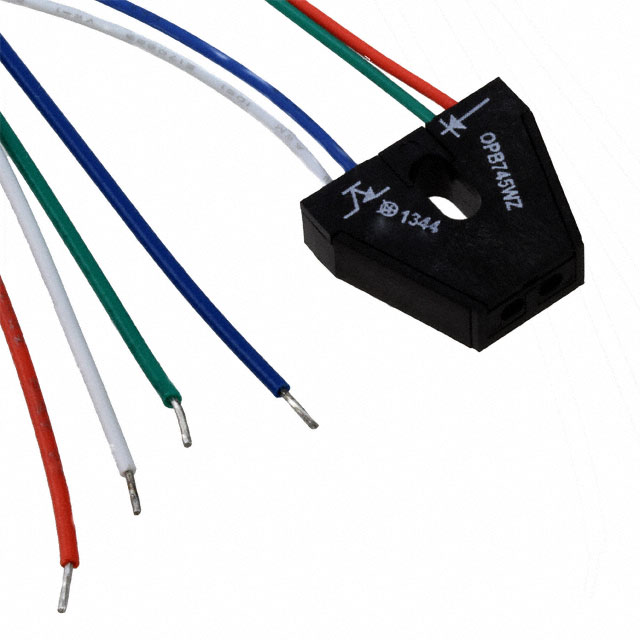

OPB745WZ

Active

TT Electronics/Optek Technology

SNSR OPTO TRANS 3.81MM REFL C-MT

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SNSR OPTO TRANS 3.81MM REFL C-MT

Technical Specifications

Parameters and characteristics for this part

Specification	OPB745WZ

Current - DC Forward (If) (Max) [Max]	40 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	Photodarlington
Package / Case	Module, Pre-Wired
Sensing Distance	0.15 in
Sensing Distance	3.81 mm
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max)	15 V

Part	Mounting Type	Package / Case	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Sensing Distance	Sensing Distance	Sensing Method	Voltage - Collector Emitter Breakdown (Max)
TT Electronics/Optek Technology OPB745WZ	Chassis Mount	Module Pre-Wired	40 mA	-40 °C	80 C	Photodarlington	0.15 in	3.81 mm	Reflective	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 0.150" (3.81mm) Module, Pre-Wired

Technical documentation and resources
