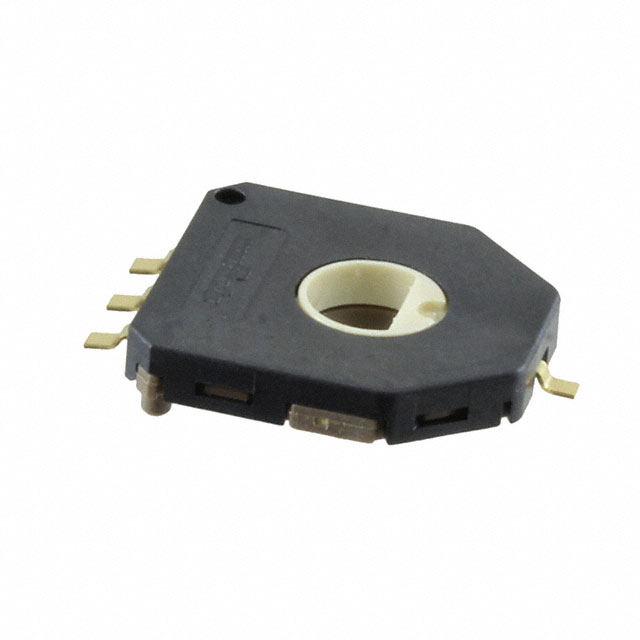

SV01A103AEA01R00

Obsolete

Murata Power Solutions Inc.

SENSOR ROTARY 333.3DEG SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

SENSOR ROTARY 333.3DEG SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SV01A103AEA01R00

Actuator Type	Hole for Shaft
For Measuring	Rotary Position
Linearity	2 %
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Package / Case	4-SMD, Gull Wing
Resistance	10000 Ohms
Resistance Tolerance	30 %
Rotation Angle - Electrical, Mechanical [Max]	333.3 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Resistive
Termination Style	SMD (SMT) Tab

Part	Linearity	Mounting Type	Resistance	For Measuring	Package / Case	Resistance Tolerance	Actuator Type	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Output
Murata Power Solutions Inc. SV01A103AEA01R00	2 %	Surface Mount	10000 Ohms	Rotary Position	4-SMD Gull Wing	30 %	Hole for Shaft	Resistive	85 °C	-40 °C	SMD (SMT) Tab	333.3 °	0 °	Analog Voltage
