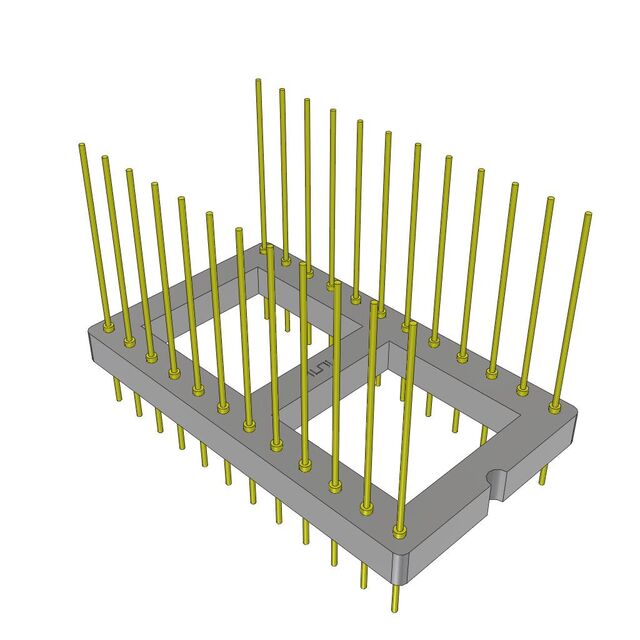

APA-624-G-P

Active

Samtec Inc.

ADAPTER PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APA-624-G-P

Active

Samtec Inc.

ADAPTER PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APA-624-G-P

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	20 µin
Contact Finish Thickness - Post	0.51 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	24
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder

APA-624 Series

Part	Housing Material	Material Flammability Rating	Features	Pitch - Post	Pitch - Post	Contact Material - Post	Termination	Contact Finish - Post	Mounting Type	Number of Positions or Pins (Grid)	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. APA-624-T-A	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Open Frame	2.54 mm	0.1 in	Phosphor Bronze	Solder	Tin	Through Hole	24	Phosphor Bronze	0.1 in	2.54 mm
Samtec Inc. APA-624-T-N	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Open Frame	2.54 mm	0.1 in	Phosphor Bronze	Solder	Tin	Through Hole	24	Phosphor Bronze	0.1 in	2.54 mm
Samtec Inc. APA-624-G-N	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Open Frame	2.54 mm	0.1 in	Phosphor Bronze	Solder	Gold	Through Hole	24	Phosphor Bronze	0.1 in	2.54 mm	20 µin	0.51 µm	Gold	0.51 µm	20 µin
Samtec Inc. APA-624-G-B	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Open Frame	2.54 mm	0.1 in	Phosphor Bronze	Solder	Gold	Through Hole	24	Phosphor Bronze	0.1 in	2.54 mm	20 µin	0.51 µm	Gold	0.51 µm	20 µin
Samtec Inc. APA-624-G-M	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Open Frame	2.54 mm	0.1 in	Phosphor Bronze	Solder	Gold	Through Hole	24	Phosphor Bronze	0.1 in	2.54 mm	20 µin	0.51 µm	Gold	0.51 µm	20 µin
Samtec Inc. APA-624-G-A1	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Open Frame	2.54 mm	0.1 in	Phosphor Bronze	Solder	Gold	Through Hole	24	Phosphor Bronze	0.1 in	2.54 mm	20 µin	0.51 µm	Gold	0.51 µm	20 µin
Samtec Inc. APA-624-G-P	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Open Frame	2.54 mm	0.1 in	Phosphor Bronze	Solder	Gold	Through Hole	24	Phosphor Bronze	0.1 in	2.54 mm	20 µin	0.51 µm	Gold	0.51 µm	20 µin
Samtec Inc. APA-624-T-M	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Open Frame	2.54 mm	0.1 in	Phosphor Bronze	Solder	Tin	Through Hole	24	Phosphor Bronze	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	18	$ 16.51

Description

General part information

APA-624 Series

24 (2 x 12) Pos Socket Gold Through Hole
