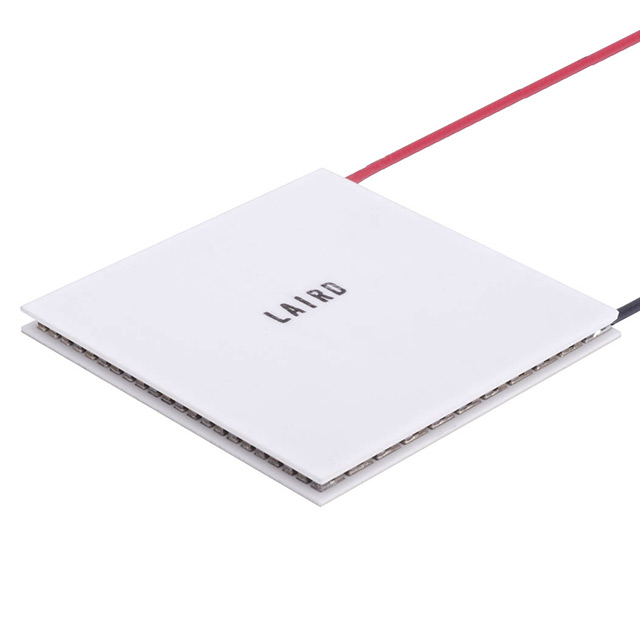

430883-301
Laird Thermal Systems, Inc.
PELTIER UT6,24,F1,5555,TA,W6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430883-301 |
|---|---|
| Current - Max [Max] | 6 A |
| Delta Tmax @ Th | 74 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.91 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 113 W |
| Size / Dimension [x] | 55 mm |
| Size / Dimension [y] | 55 mm |
| Voltage - Max [Max] | 29.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 72.62 | |
| 5 | $ 68.38 | |||
| 10 | $ 66.25 | |||
| 25 | $ 64.13 | |||
| 50 | $ 62.43 | |||
| 100 | $ 60.73 | |||
Description
General part information
430883 Series
Peltier Module 113.0W @ 25°C 6 A 80°C
