7225-1512-060

Active

Radiall USA, Inc.

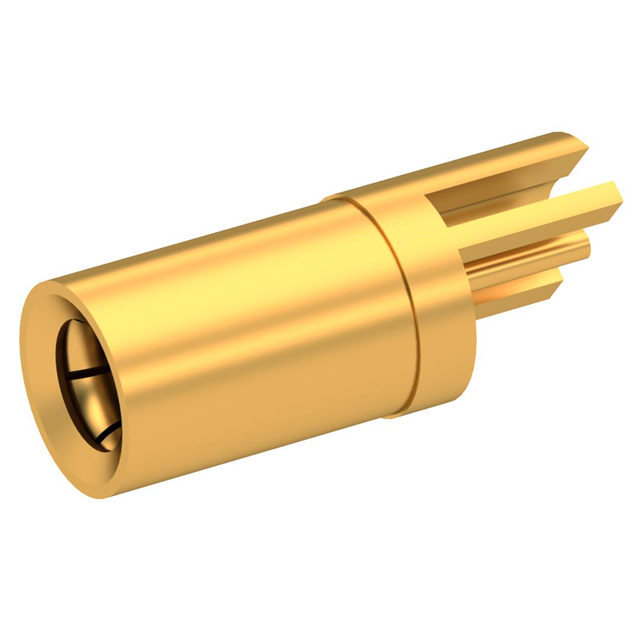

SSMB / EDGE CARD PLUG FEMALE GOL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB / EDGE CARD PLUG FEMALE GOL

Technical Specifications

Parameters and characteristics for this part

Specification	7225-1512-060

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Dielectric Material	Center Contact Plating	Mating Cycles	Voltage Rating	Contact Termination	Body Finish	Fastening Type	Frequency - Max [Max]	Connector Style	Housing Color	Body Material	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Shield Termination	Number of Ports	Connector Type
Radiall USA, Inc. 7225-1512-060	Board Edge End Launch	Polytetrafluoroethylene (PTFE)	Gold	500	250 VDC	Solder	Gold	Snap-On	12.4 GHz	SSMB	Gold	Beryllium Copper	Beryllium Copper	-65 ░C	165 °C	50 Ohms	Solder	1	Female Socket Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Plug, Female Socket 50 Ohms Board Edge, End Launch Solder
