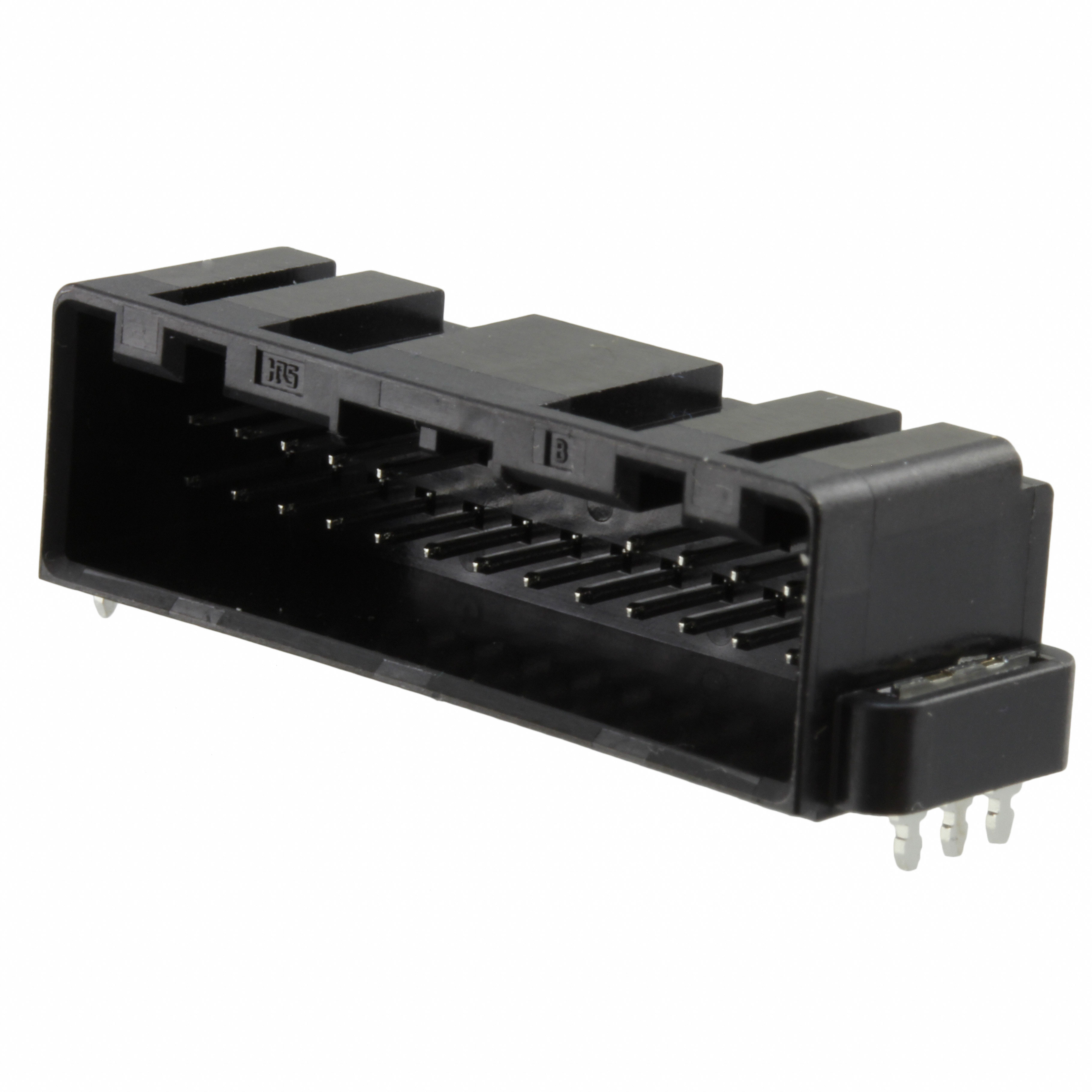

GT8E-24DP-2H

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 24POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GT8E-24DP-2H

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 24POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT8E-24DP-2H

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height [z]	0.403 in
Insulation Height [z]	10.23 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

GT8E Series

...

Part	Mounting Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Type	Color	Fastening Type	Connector Type	Insulation Material	Pitch [x]	Pitch [x]	Note	Contact Finish - Post	Number of Positions	Features	Style	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Shrouding	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Voltage Rating
Hirose Electric USA, Inc. GT8E-3P-DS(26)
Hirose Electric USA, Inc. GT8E-2P-DS(03)
Hirose Electric USA, Inc. GT8E-3P-HU	Free Hanging (In-Line)	Crimp	-40 °C	105 ░C	1	Male Pin	Black	Latch Holder	Plug	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	Contacts Not Included
Hirose Electric USA, Inc. GT8E-12DP-DS(26)	Through Hole Right Angle				2	Male Pin		Latch Lock	Header	Polybutylene Terephthalate (PBT)				Tin	12	Board Guide	Board to Cable/Wire	0.079 in	2 mm	Solder	Square	0.118 in	3 mm	Brass	0.079 in	2 mm	Black	Shrouded - 4 Wall	All
Hirose Electric USA, Inc. GT8E-10P-2H(10)
Hirose Electric USA, Inc. GT8E-4PP-HU	Free Hanging (In-Line)	Crimp	-40 °C	105 ░C	1	Male Pin	Black	Latch Holder	Plug	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	Contacts Not Included		4
Hirose Electric USA, Inc. GT8E-24DP-2H	Surface Mount Right Angle				2	Male Pin		Latch Holder	Header	Polybutylene Terephthalate (PBT)				Tin	24		Board to Cable/Wire			Solder	Square			Brass	0.079 in	2 mm	Black	Shrouded - 4 Wall	All	0.403 in	10.23 mm
Hirose Electric USA, Inc. GT8E-2PP-HU(A)	Free Hanging (In-Line)	Crimp	-40 °C	105 ░C	1	Male Pin		Latch Holder	Plug	Polybutylene Terephthalate (PBT)	0.079 in	2 mm	Contacts Not Included		2
Hirose Electric USA, Inc. GT8E-2P-2H(30)
Hirose Electric USA, Inc. GT8E-5P-DSA(55)	Through Hole		-40 °C	105 ░C	1	Male Pin		Latch Lock	Header	Nylon Polyamide (PA)				Tin		Solder Retention	Board to Cable/Wire			Solder	Square	0.118 in	3 mm	Brass	0.079 in	2 mm	Black	Shrouded - 4 Wall	All	0.476 in	12.1 mm	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.43
		10	$ 2.08
		100	$ 1.80
	Tape & Reel (TR)	300	$ 2.52

Description

General part information

GT8E Series

Connector Header Surface Mount, Right Angle 24 position 0.079" (2.00mm)
