R317270000

Active

Radiall USA, Inc.

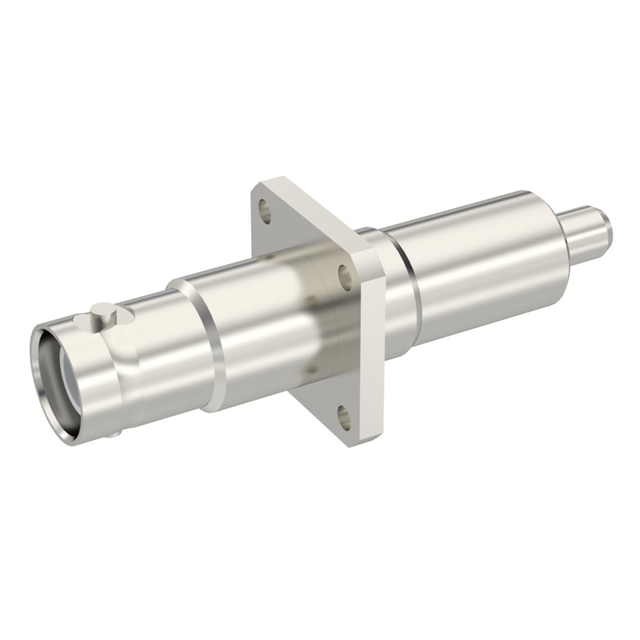

RF SHV CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SHV CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK

Technical Specifications

Parameters and characteristics for this part

Specification	R317270000

Body Finish	Nickel
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	SHV
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Dielectric Material	Fastening Type	Shield Termination	Number of Ports	Mounting Feature	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Mating Cycles	Contact Termination	Cable Group	Cable Group	Center Contact Material	Body Material	Housing Color	Body Finish	Connector Style	Center Contact Plating	Impedance	Connector Type
Radiall USA, Inc. R317270000	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Crimp	1	Flange	1 Connector 1 Contact 1 Ferrule	-65 ░C	165 °C	2 GHz	500	Crimp	141	RG-58	Beryllium Copper Brass	Brass	Silver	Nickel	SHV	Gold	50 Ohms	Jack Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SHV Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
