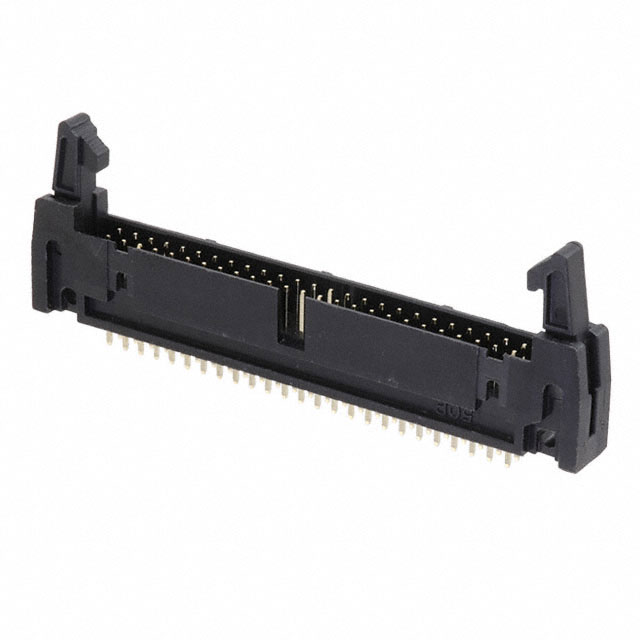

MHR-50-VUAL

Active

Adam Tech

CONN HEADER VERT 50POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 50POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	MHR-50-VUAL

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.4 mm
Insulation Height	0.331 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Type	Contact Material	Contact Finish Thickness - Post	Shrouding	Contact Shape	Current Rating (Amps)	Insulation Height	Insulation Height	Mounting Type	Insulation Material	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Number of Positions Loaded	Termination	Number of Rows	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Features	Contact Finish - Mating	Voltage Rating	Connector Type	Number of Positions	Pitch - Mating	Pitch - Mating
Adam Tech MHR-50-VUAL	Black	105 ░C	-55 °C	Board to Cable/Wire	Male Pin	Brass	Flash	Shrouded - 4 Wall	Square	3 A	8.4 mm	0.331 in	Through Hole	Polybutylene Terephthalate (PBT)	3.6 mm	0.142 in	2.54 mm	0.1 in	Latch Lock/Eject Hooks Long	All	Solder	2	Gold	UL94 V-0	Flash	Keying Slot	Gold	250 VAC	Header	50	0.1 in	2.54 mm
