ERN.00.250.GTL
ActiveLEMO
CONN NIMCAMAC RCPT STR 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
ERN.00.250.GTL
ActiveLEMO
CONN NIMCAMAC RCPT STR 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERN.00.250.GTL |
|---|---|
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Connector Style | NIM-CAMAC CD/N 549 |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull |
| Housing Color | Natural |
| Impedance | 50 Ohms |

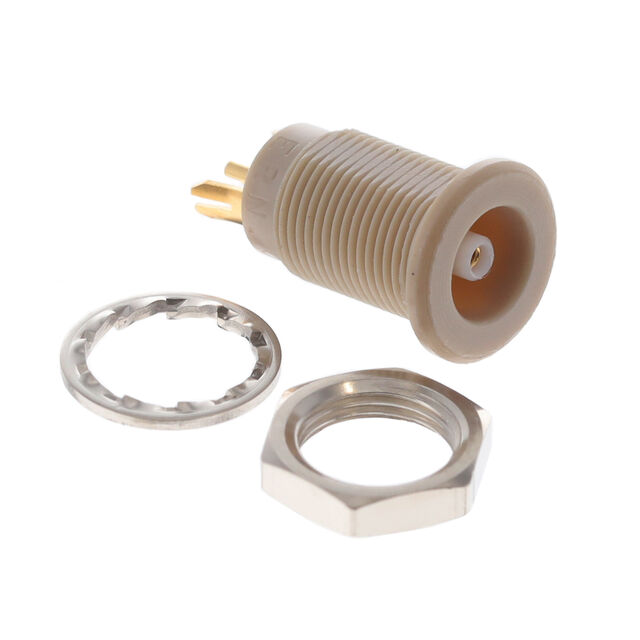

| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 |
| Mating Cycles | 5000 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 700 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.70 | |
| 10 | $ 33.74 | |||
| 25 | $ 31.63 | |||
| 50 | $ 30.12 | |||
| 100 | $ 28.68 | |||
| 250 | $ 26.89 | |||
Description
General part information
ERN.00.250 Series
NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
