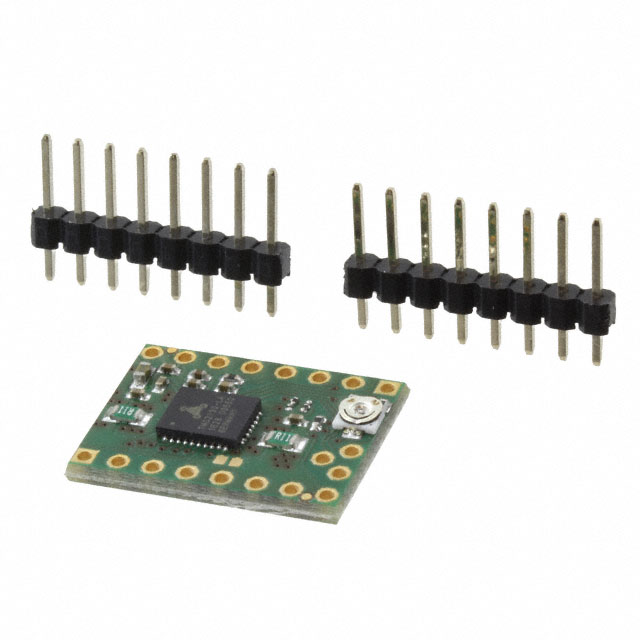

TMCSILENTSTEPSTICK SPI

Active

Analog Devices Inc./Maxim Integrated

TMC2130 STEPPER DRIVER BOARD

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

TMC2130 STEPPER DRIVER BOARD

Technical Specifications

Parameters and characteristics for this part

Part	Motor Type - Stepper	Mounting Type	Technology	Applications	Step Resolution [Max]	Step Resolution [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Interface	Current - Output	Supplier Device Package	Output Configuration	Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Utilized IC / Part	Supplied Contents	Contents
Analog Devices Inc./Maxim Integrated TMC2130-TA-T	Bipolar	Surface Mount	Power MOSFET	General Purpose	1	0.00390625	46 V	5.5 V	48-TQFP Exposed Pad	SPI Step/Direction	1.4 A	48-TQFP-EP (7x7)	Half Bridge (4)	Driver - Fully Integrated Control and Power Stage	-40 °C	125 ¯C	46 V	5.5 V
Analog Devices Inc./Maxim Integrated TMC2130-EVAL																			Power Management	TMC2130	Board(s)	Board(s)
Analog Devices Inc./Maxim Integrated TMCSILENTSTEPSTICK SPI																			Power Management	TMC2130	Board(s)	Board(s)
Analog Devices Inc./Maxim Integrated TMC2130-LA	Bipolar	Surface Mount	Power MOSFET	General Purpose	1	0.00390625	46 V	5.5 V	36-VFQFN Exposed Pad	SPI Step/Direction	1.2 A	36-QFN (5x6)	Half Bridge (2)	Driver - Fully Integrated Control and Power Stage	-40 °C	125 ¯C	46 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.28

General part information

TMC2130 Motor Controller/Driver, Stepper Power Management Evaluation Board
