AAA4FZH
ActiveSwitchcraft Inc.

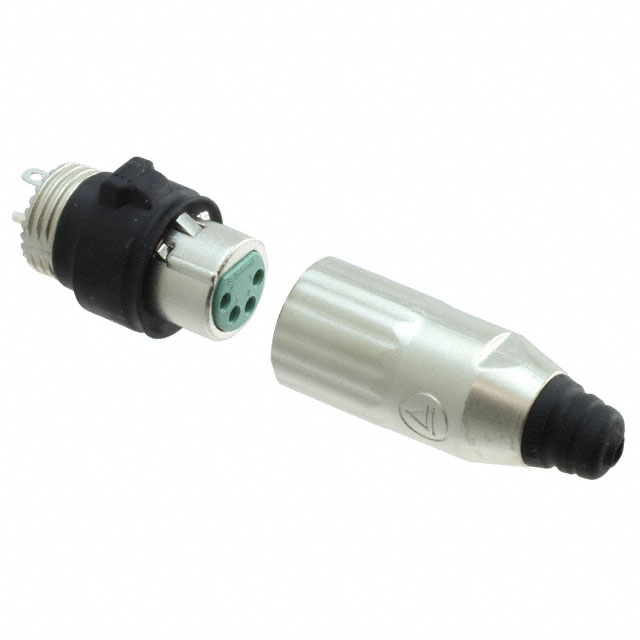

CONN PLUG FMALE XLR 4P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AAA4FZH
ActiveSwitchcraft Inc.
CONN PLUG FMALE XLR 4P SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AAA4FZH |
|---|---|
| Applications | Audio, Instrumentation |
| Backshell Material, Plating | Nickel, Zinc Alloy |
| Cable Opening [Max] [diameter] | 7.24 mm |
| Cable Opening [Max] [diameter] | 0.285 in |
| Cable Opening [Min] [diameter] | 0.15 in |
| Cable Opening [Min] [diameter] | 3.81 mm |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Fastening Type | Latch Lock |
| Features | Backshell, Strain Relief, Ground, Cable Clamp |
| Ingress Protection | IP66 |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | XLR |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.07 | |
| 10 | $ 9.27 | |||
| 25 | $ 8.37 | |||
| 50 | $ 7.77 | |||
| 100 | $ 7.22 | |||
| 300 | $ 6.46 | |||
| 500 | $ 6.14 | |||
| 1000 | $ 5.74 | |||
Description
General part information
AAA4FZ Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
