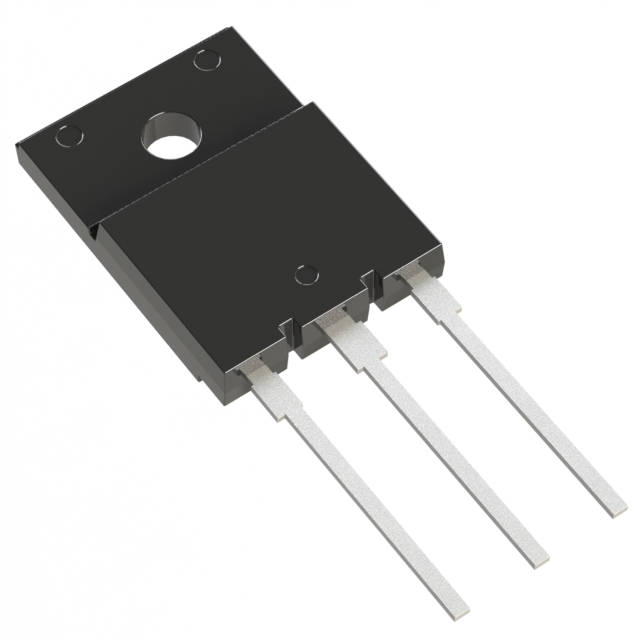

FGM623S

Active

Sanken Electric USA Inc.

IGBT 600V 30A 60W TO3PF

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

IGBT 600V 30A 60W TO3PF

Technical Specifications

Parameters and characteristics for this part

Specification	FGM623S

Current - Collector (Ic) (Max) [Max]	30 A
Current - Collector Pulsed (Icm)	100 A
Gate Charge	65 nC
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-3P-3 Full Pack
Power - Max [Max]	60 W
Supplier Device Package	TO-3PF
Td (on/off) @ 25°C	300 ns, 100 ns
Test Condition [custom]	30 A
Test Condition [custom]	15 V, 300 V
Test Condition [custom]	39 Ohm
Vce(on) (Max) @ Vge, Ic	1.7 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Test Condition [custom]	Test Condition [custom]	Test Condition [custom]	Gate Charge	Td (on/off) @ 25°C	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Power - Max [Max]	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Package / Case	Operating Temperature
Sanken Electric USA Inc. FGM623S	30 A	TO-3PF	30 A	15 V 300 V	39 Ohm	65 nC	100 ns 300 ns	600 V	Through Hole	60 W	100 A	1.7 V	TO-3P-3 Full Pack	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT 600 V 30 A 60 W Through Hole TO-3PF
