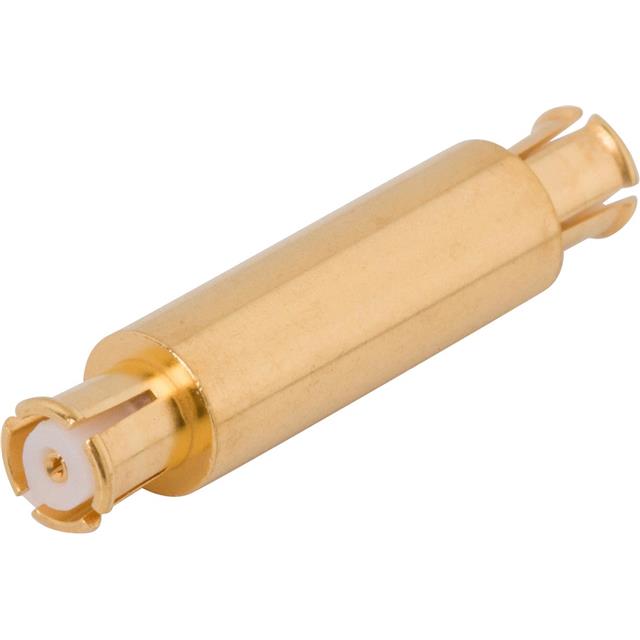

1290-4007

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK SMP 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK SMP 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1290-4007

Adapter Series	SMP to SMP
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SMP Jack, Female Socket
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Conversion Type	Convert From (Adapter End)	Mounting Type	Adapter Type	Center Gender	Center Contact Material	Adapter Series	Body Material	Frequency - Max [Max]	Style	Fastening Type	Convert To (Adapter End)	Center Contact Plating	Dielectric Material	Impedance	Body Finish
Amphenol SV Microwave 1290-4007	Same Series	SMP Jack Female Socket	Free Hanging (In-Line)	Jack to Jack	Female to Female	Beryllium Copper	SMP to SMP	Beryllium Copper	40 GHz	Straight	Snap-On	Female Socket SMP Jack	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMP Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
