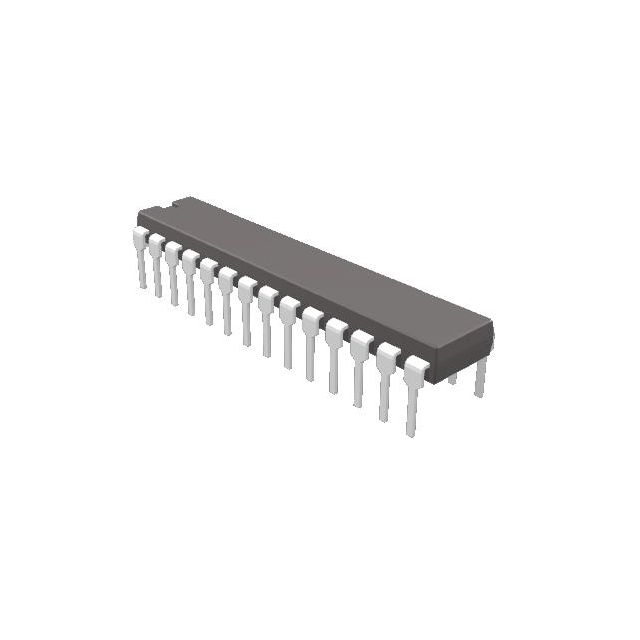

LS7267
ActiveLSI/CSI
IC BCD COUNTER DUAL 24BIT 28DIP
Deep-Dive with AI
Search across all available documentation for this part.
LS7267
ActiveLSI/CSI
IC BCD COUNTER DUAL 24BIT 28DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LS7267 |
|---|---|
| Count Rate | 50 MHz |
| Direction | Up, Down |
| Logic Type | Binary Counter, BCD Counter |
| Mounting Type | Through Hole |
| Number of Bits per Element | 24 |
| Number of Elements | 2 |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 28-DIP |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Reset | Synchronous |
| Supplier Device Package | 28-DIP |
| Timing | Synchronous |
| Trigger Type | Positive Edge |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 16.21 | |
| 25 | $ 14.19 | |||
| 100 | $ 11.71 | |||
| 500 | $ 9.91 | |||
| 1000 | $ 7.74 | |||
Description
General part information
LS7267 Series
Counter IC BCD Counter, Binary Counter 2 Element 24 Bit Positive Edge 28-DIP
