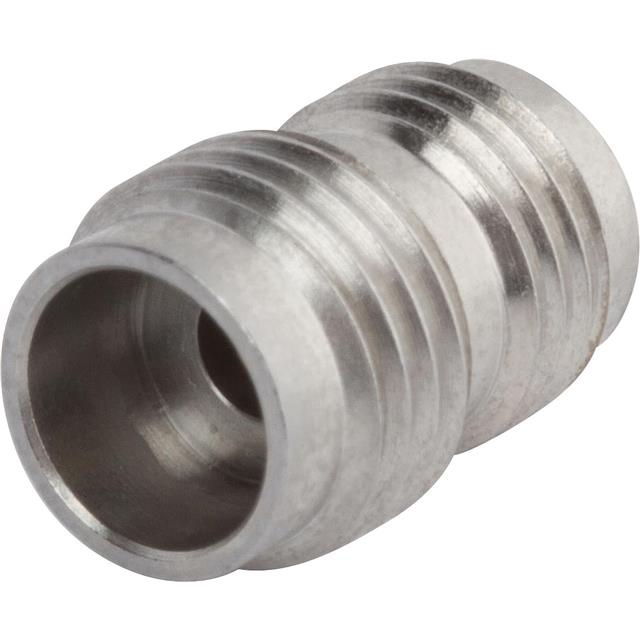

SF1675-6004

Active

Amphenol SV Microwave

CONN 2.4MM JACK 50 OHM COMPRESS

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN 2.4MM JACK 50 OHM COMPRESS

Technical Specifications

Parameters and characteristics for this part

Specification	SF1675-6004

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI)
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	50 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Panel Mount, Threaded
Number of Ports	1
Shield Termination	Solder

Part	Connector Style	Connector Style	Connector Style	Impedance	Features	Housing Color	Shield Termination	Number of Ports	Body Material	Frequency - Max [Max]	Connector Type	Dielectric Material	Contact Termination	Mating Cycles	Mounting Type	Center Contact Material	Center Contact Plating
Amphenol SV Microwave SF1675-6004	OS-50	2.4 mm	APC-2.4	50 Ohms	Field Replaceable For Hermetically Sealed Pin	Silver	Solder	1	Stainless Steel	50 GHz	Female Socket Jack	Polyetherimide (PEI)	Compression	500	Panel Mount Threaded	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.88

General part information

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Panel Mount, Threaded Compression
