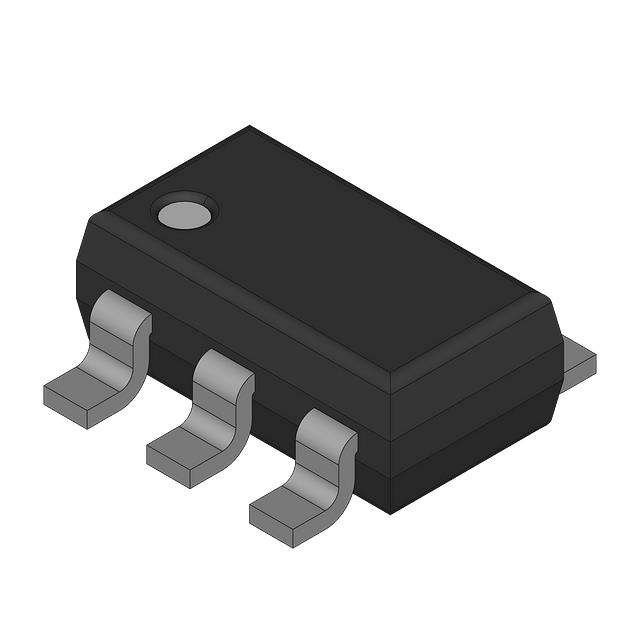

LMR12010YMK/NOPB
ActiveNational Semiconductor
IC REG BUCK ADJ 1A SOT23
Deep-Dive with AI
Search across all available documentation for this part.
LMR12010YMK/NOPB
ActiveNational Semiconductor
IC REG BUCK ADJ 1A SOT23
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR12010YMK/NOPB |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 3 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TSOT-23-6, SOT-23-6 Thin |
| Supplier Device Package | SOT-23-THIN |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 20 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) [Max] | 17 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 170 | $ 1.77 | |
| Cut Tape (CT) | 1 | $ 3.28 | ||
| Digi-Reel® | 1 | $ 3.28 | ||
| Tape & Reel (TR) | 1000 | $ 1.73 | ||
| 2000 | $ 1.65 | |||
| 5000 | $ 1.58 | |||
Description
General part information
LMR12010 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A SOT-23-6 Thin, TSOT-23-6
Documents
Technical documentation and resources
No documents available
