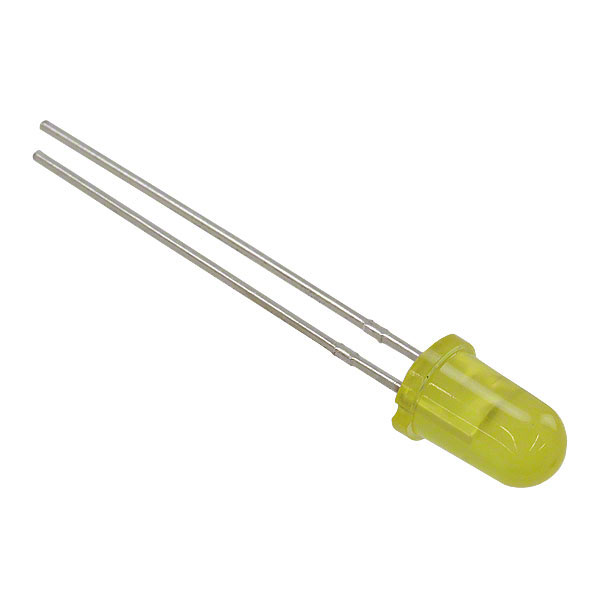

5219248F
ActiveDIALIGHT
LED YELLOW DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
5219248F
ActiveDIALIGHT
LED YELLOW DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5219248F |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] | 9.66 mm |
| Lens Color | Yellow |
| Lens Size [diameter] | 5 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 29 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 590 nm |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.02 | |
| 10 | $ 0.62 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.32 | |||
| 2000 | $ 0.30 | |||
| 5000 | $ 0.28 | |||
| 10000 | $ 0.26 | |||
| 25000 | $ 0.25 | |||
Description
General part information
5219248 Series
Yellow 590nm LED Indication - Discrete 2.1V Radial
Documents
Technical documentation and resources
No documents available
