C01630H00610012
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 7POS SILVER SLDR
Deep-Dive with AI
Search across all available documentation for this part.
C01630H00610012
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 7POS SILVER SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C01630H00610012 |
|---|---|
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 12 A |
| Features | Cable Clamp |
| Ingress Protection | IP67, IP65 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.18 | |
| 10 | $ 13.45 | |||
| 25 | $ 12.93 | |||
| 50 | $ 12.42 | |||
| 100 | $ 11.73 | |||
| 250 | $ 10.69 | |||
| 500 | $ 10.00 | |||
| 1000 | $ 9.17 | |||
Description
General part information
C01630H006 Series

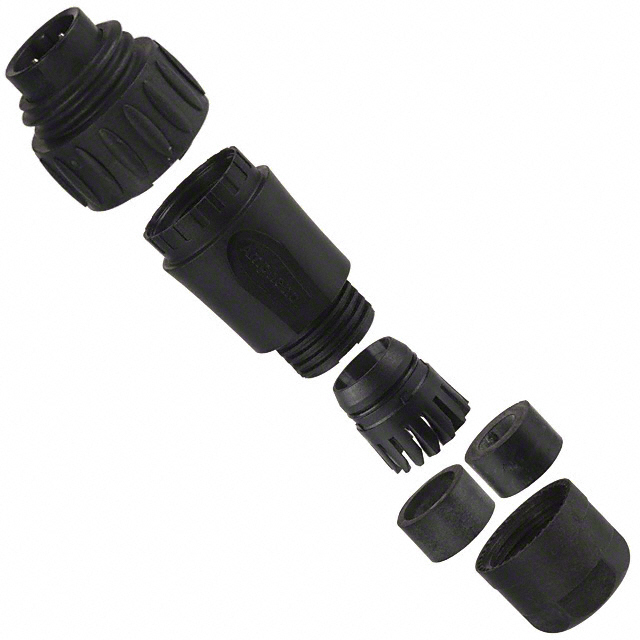

7 Position Circular Connector Plug, Male Pins Solder
Documents
Technical documentation and resources
