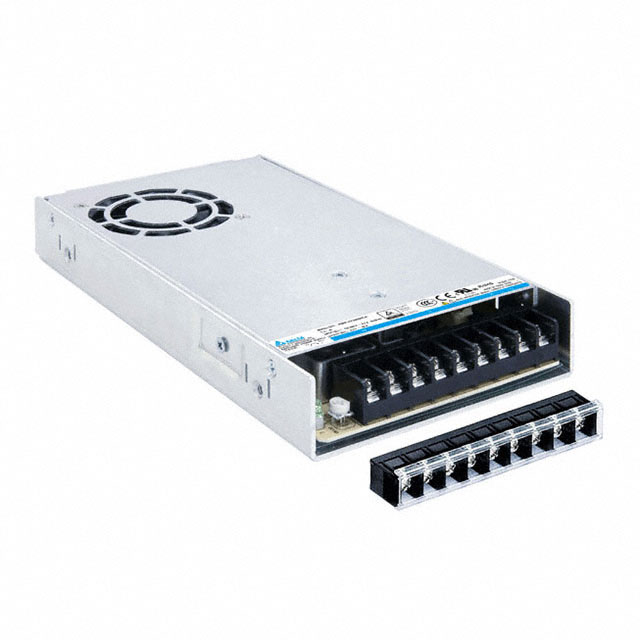

PMR-4V320WCAA

Active

Delta Electronics

AC/DC CONVERTER 4.2V 320W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 4.2V 320W

Technical Specifications

Parameters and characteristics for this part

Specification	PMR-4V320WCAA

Applications	ITE (Commercial)
Approval Agency	CCC, CE, cURus, TUVgs, CB
Current - Output 1	60 A
Efficiency	84 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	320 W
Size / Dimension [x]	215 mm
Size / Dimension [x]	8.46 "
Size / Dimension [y]	4.53 "
Size / Dimension [y]	115 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Type	Conformal Coated, Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	88 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	4.2 V

Part	Power (Watts)	Current - Output 1	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Approval Agency	Efficiency	Applications	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]
Delta Electronics PMR-4V320WCGA	320 W	60 A	Chassis Mount	30 mm	4.53 "	1.18 in	215 mm	115 mm	8.46 "	Enclosed	Adjustable Output PFC Universal Input	4.2 V	-10 °C	70 °C	3000 V	CB CCC CE cURus TUV	83.5 %	ITE (Commercial)	1	264 VAC	88 VAC
Delta Electronics PMR-4V320WDAA	320 W	60 A	Chassis Mount	30 mm	4.53 "	1.18 in	215 mm	115 mm	8.46 "	Conformal Coated Enclosed	Adjustable Output PFC Universal Input	4.2 V	-20 °C	70 °C	3000 V	CB CCC CE cURus TUV	86.5 %	ITE (Commercial)	1	264 VAC	88 VAC
Delta Electronics PMR-4V320WCAA	320 W	60 A	Chassis Mount	30 mm	4.53 "	1.18 in	215 mm	115 mm	8.46 "	Conformal Coated Enclosed	Adjustable Output PFC Universal Input	4.2 V	-20 °C	70 °C	3000 V	CB CCC CE cURus TUVgs	84 %	ITE (Commercial)	1	264 VAC	88 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 85.69
