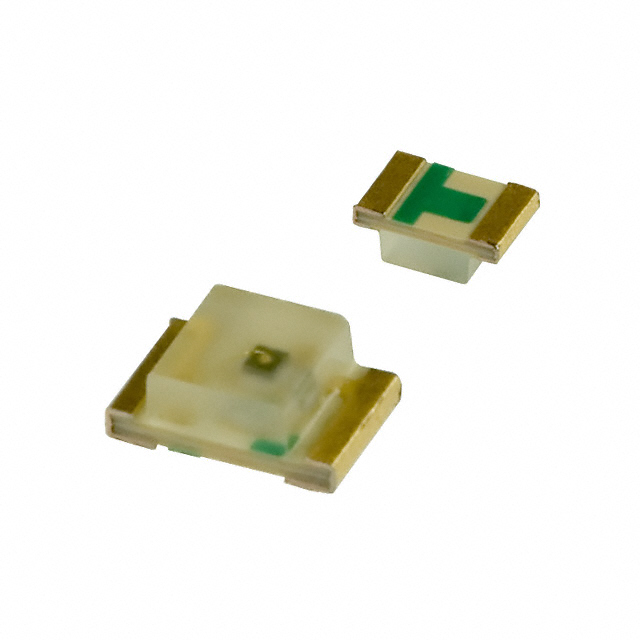

AA1112H-TR
ObsoleteStanley Electric Co
LED ORANGE DIFFUSED 2125 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AA1112H-TR
ObsoleteStanley Electric Co
LED ORANGE DIFFUSED 2125 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AA1112H-TR |
|---|---|
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Color | White |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 3.7 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 2125 |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 606 nm |
| Wavelength - Peak | 605 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AA1112 Series
Orange 606nm LED Indication - Discrete 2.2V 0805 (2012 Metric)
