902-0091-001
ActiveROBOTIS

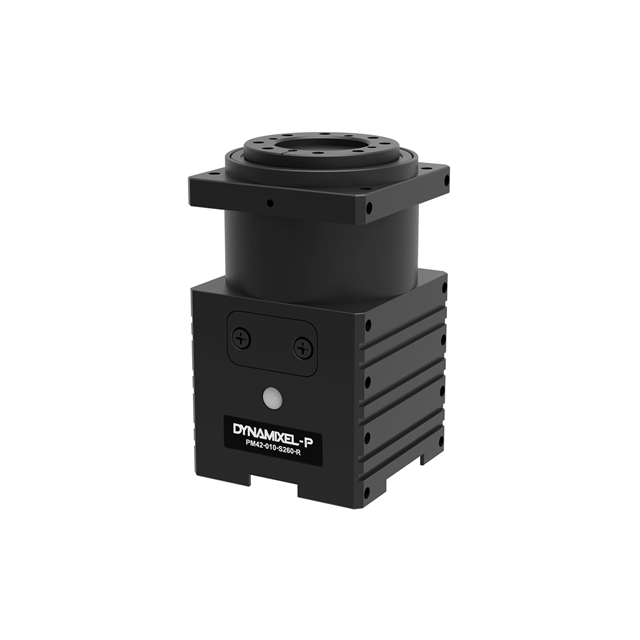

PM42-010-S260-R DYNAMIXEL SERVO
Deep-Dive with AI
Search across all available documentation for this part.
902-0091-001
ActiveROBOTIS
PM42-010-S260-R DYNAMIXEL SERVO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 902-0091-001 |
|---|---|
| Encoder Type | Absolute |
| Features | Integrated Controller |
| Function | Servomotor |
| Gear Reduction Ratio | 257.02 |
| Motor Type | Brushed |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -5 °C |
| Power - Rated | 10 W |
| RPM | 28 RPM |
| Size / Dimension [x] | 2.834 in, 72 mm |
| Size / Dimension [y] | 42 mm, 1.653 in |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 240.7 oz-in |
| Torque - Rated (oz-in / mNm) | 1700 mNm |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
| Weight | 0.595 lb |
| Weight | 270 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
902-0091 Series
Brushed DC Motor Servomotor 28 RPM 10W Absolute 24VDC
Documents
Technical documentation and resources
No documents available
