845-078-520-512
ActiveEDAC Inc.

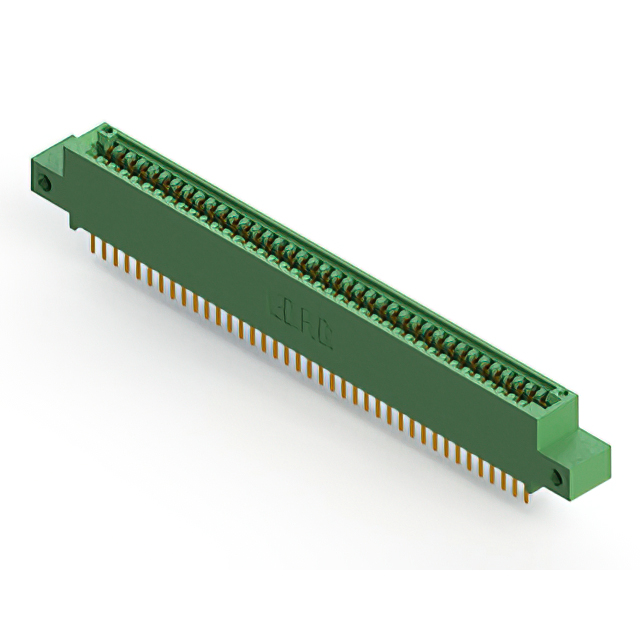

CONN EDGE DUAL FMALE 78POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-078-520-512
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-078-520-512 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 78 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-078 Series
...
| Part | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Mounting Type | Pitch [x] | Pitch [x] | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Contact Finish | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Material | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Number of Positions/Bay/Row [custom] | Contact Type | Termination | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 78 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Wire Wrap | |||
EDAC Inc. | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 78 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Solder | 3.25 mm | 0.128 in | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 78 | Through Hole Right Angle | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Solder | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | 78 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Solder | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 78 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Solder | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 78 | Through Hole Right Angle | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Solder | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 78 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Solder | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 78 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Solder | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 78 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Wire Wrap | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 78 | Board Edge Straddle Mount | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 125 °C | -40 °C | Dual | Gold | Green | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 39 | Cantilever | Solder | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 82.10 | |
Description
General part information
845-078 Series
78 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
