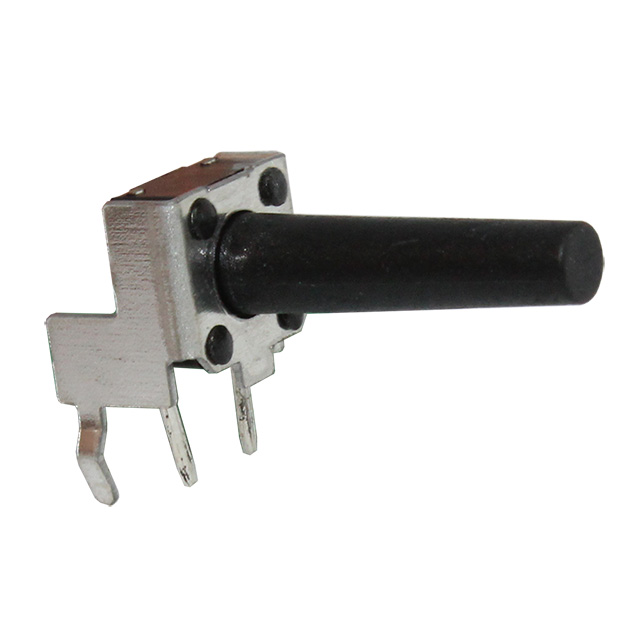

CT1102V15.85F100

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CT1102V15.85F100

Actuator Length, Right Angle [x]	15.85 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Side Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Force	100 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7.5 mm
Outline [y]	6.3 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Switch Function	Circuit	Actuator Length, Right Angle [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Illumination	Outline [x]	Outline [y]	Actuator Type	Operating Force	Actuator Orientation	Contact Rating @ Voltage	Termination Style	Switch Travel
CIT Relay and Switch CT1102V15.85F260	Off-Mom	SPST-NO	15.85 mm	Through Hole Right Angle	85 °C	-40 °C	Nylon 6/6 Polyamide (PA66)	Non-Illuminated	7.5 mm	6.3 mm	Plunger for Cap	260 gf	Side Actuated	0.05 A 50 VDC	PC Pin	0.25 mm
CIT Relay and Switch CT1102V15.85F100	Off-Mom	SPST-NO	15.85 mm	Through Hole Right Angle	85 °C	-40 °C	Nylon 6/6 Polyamide (PA66)	Non-Illuminated	7.5 mm	6.3 mm	Plunger for Cap	100 gf	Side Actuated	0.05 A 50 VDC	PC Pin	0.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
