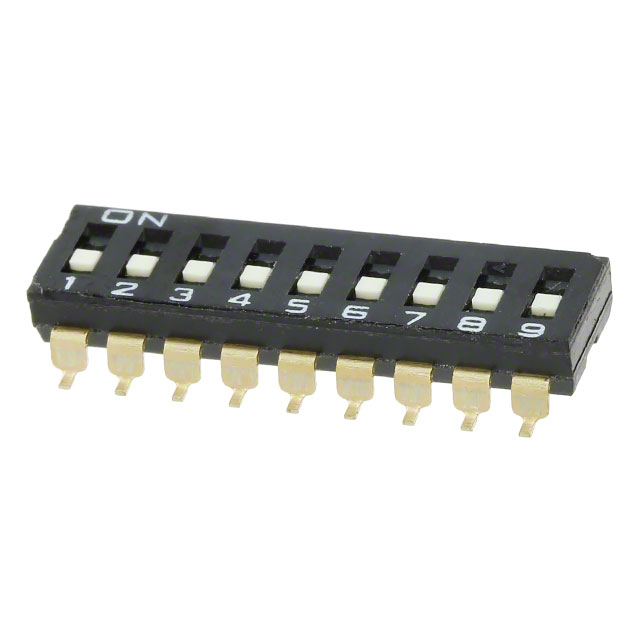

A6S-9101-H
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6S-9101-H
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6S-9101-H |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Circuit | SPST |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 1000 Cycles |
| Height Above Board | 3.7 mm |
| Height Above Board | 0.146 in |
| Length | 23.8 mm |
| Length | 0.937 in |
| Mechanical Life | 1000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 9 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.44 | |
| 20 | $ 3.71 | |||
| 40 | $ 3.56 | |||
| 100 | $ 3.36 | |||
| 260 | $ 3.17 | |||
| 500 | $ 3.04 | |||
| 1000 | $ 2.91 | |||
| 2500 | $ 2.74 | |||
Description
General part information
A6S-9101 Series
Dip Switch SPST 9 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
