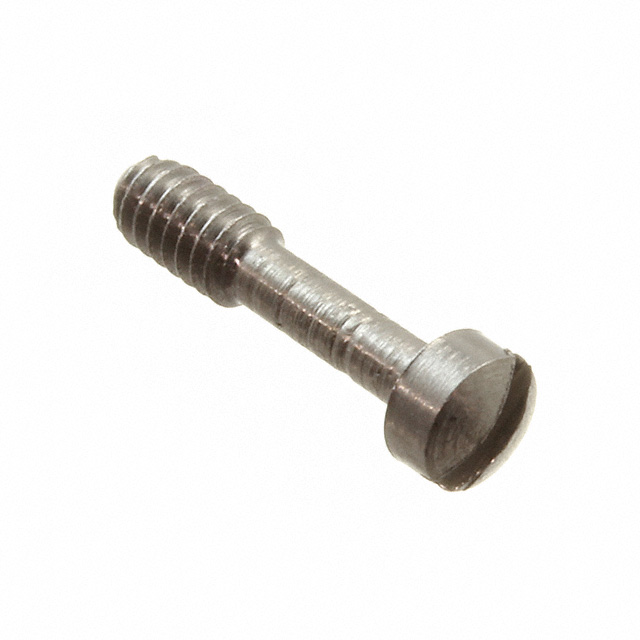

0802-SS-20
ActiveRAF Electronic Hardware
1/8HD X 7/16 X 2-56 THD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0802-SS-20
ActiveRAF Electronic Hardware
1/8HD X 7/16 X 2-56 THD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0802-SS-20 |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 3.18 mm |
| Head Diameter [diameter] | 0.125 " |
| Head Diameter [diameter] | 0.125 " |
| Head Height | 0.083 " |
| Head Height | 2.11 mm |
| Length - Below Head [custom] | 0.438 in |
| Length - Below Head [custom] | 11.11 mm |
| Length - Overall | 13.22 mm |
| Length - Overall | 0.521 in |
| Material | Stainless Steel |
| Plating | Passivated |
| Screw Head Type | Pan Head |
| Thread Size | #2-56 |
| Type | Panel Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.06 | |
| 5 | $ 2.91 | |||
| 10 | $ 2.83 | |||
| 25 | $ 2.76 | |||
| 50 | $ 2.68 | |||
| 100 | $ 2.53 | |||
| 250 | $ 2.37 | |||
| 500 | $ 2.30 | |||
| 1000 | $ 2.22 | |||
Description
General part information
0802-SS Series
#2-56 Pan Head Panel Screw Slotted Drive Stainless Steel
