325-017-520-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 17POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
325-017-520-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 17POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-017-520-101 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
325-017 Series
| Part | Contact Material | Number of Rows | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Material - Insulation | Read Out | Pitch [x] | Pitch [x] | Card Type | Contact Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Card Thickness | Card Thickness | Flange Feature | Color | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 1 | Female | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Single | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Solder Eyelet(s) | 125 °C | -65 ░C | Through Hole | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | Green | Gold | ||
EDAC Inc. | Copper Alloy | 1 | Female | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Single | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Solder Eyelet(s) | 125 °C | -65 ░C | Through Hole | 3.18 mm | 0.125 in | Green | Gold | |||
EDAC Inc. | Copper Alloy | 1 | Female | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Single | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Wire Wrap | 125 °C | -65 ░C | Through Hole | 3.18 mm | 0.125 in | Green | Gold | |||
EDAC Inc. | Copper Alloy | 1 | Female | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Single | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Solder | 125 °C | -65 ░C | Through Hole | 3.18 mm | 0.125 in | Flush Mount M3 Threaded Insert Top Opening | Green | Gold | ||
EDAC Inc. | Copper Alloy | 1 | Female | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Single | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Solder | 125 °C | -65 ░C | Through Hole | 3.18 mm | 0.125 in | Green | Gold | |||
EDAC Inc. | Copper Alloy | 1 | Female | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Single | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Wire Wrap | 125 °C | -65 ░C | Through Hole | 3.18 mm | 0.125 in | Flush Mount M3 Threaded Insert Top Opening | Green | Gold | ||
EDAC Inc. | Copper Alloy | 1 | Female | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Single | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Wire Wrap | 125 °C | -65 ░C | Through Hole | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | Green | Gold | 0.16 in | 4.06 mm |
EDAC Inc. | Copper Alloy | 1 | Female | 10 Áin | 0.25 Ám | 1 | Diallyl Phthalate (DAP) | Single | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Solder Eyelet(s) | 125 °C | -65 ░C | Through Hole | 3.18 mm | 0.125 in | Flush Mount M3 Threaded Insert Top Opening | Green | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.96 | |
Description
General part information
325-017 Series

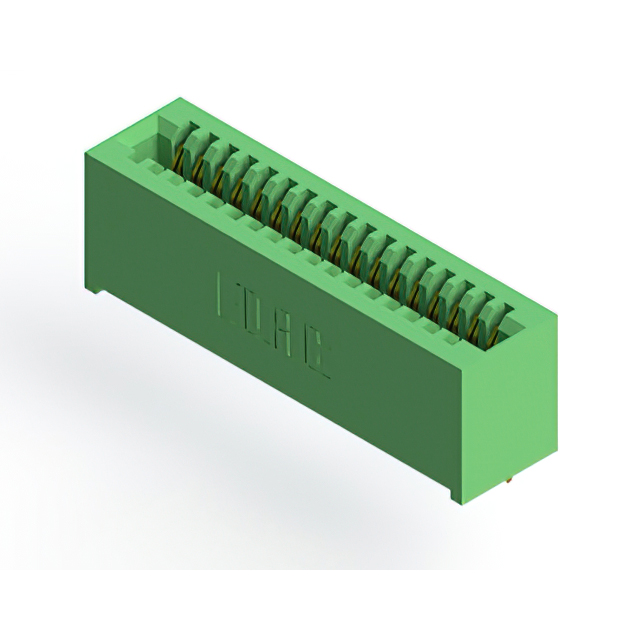

17 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
