11-4S-P

Active

3M (TC)

CONN RING CIRC 18-22AWG #4 CRIMP

Search across all available documentation for this part.

Active

3M (TC)

CONN RING CIRC 18-22AWG #4 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	11-4S-P

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	20.32 mm
Length - Overall [x]	0.8 in
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	4 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.03 in
Thickness	0.76 mm
Width - Outer Edges [y]	0.25 "
Width - Outer Edges [y]	6.35 mm
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Insulation Diameter [diameter]	Contact Finish	Terminal Type	Material - Insulation	Color	Termination	Features	Insulation	Length - Overall [x]	Length - Overall [x]	Thickness	Thickness	Contact Material	Stud/Tab Size	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]
3M (TC) 11-4S-P	22 AWG	17.5 AWG	3.68 mm	0.145 "	Tin	Circular	Vinyl	Red	Crimp	Butted Seam	Insulated	20.32 mm	0.8 in	0.03 in	0.76 mm	Copper ETP	4 Stud	Free Hanging (In-Line)	0.25 "	6.35 mm

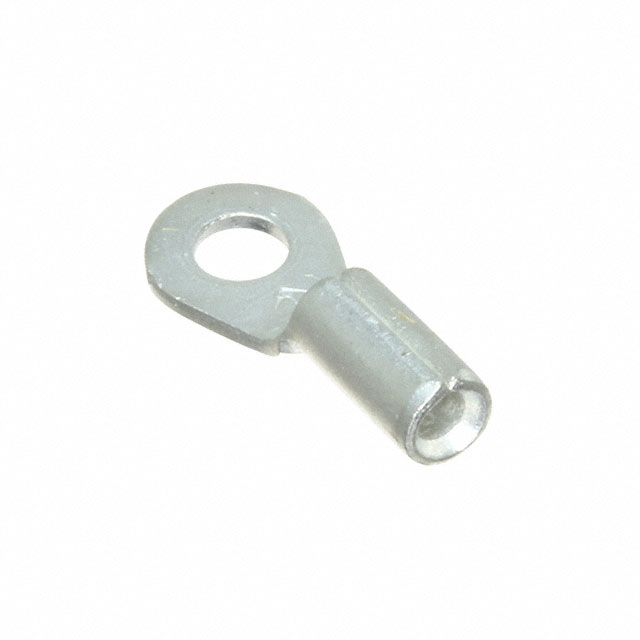

3M (TC) 11-4S	22 AWG	17.5 AWG			Tin	Circular			Crimp	Butted Seam	Non-Insulated	15.24 mm	0.6 in	0.03 in	0.76 mm	Copper ETP	4 Stud	Free Hanging (In-Line)	0.25 "	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 4 Stud Circular 18-22 AWG Crimp
