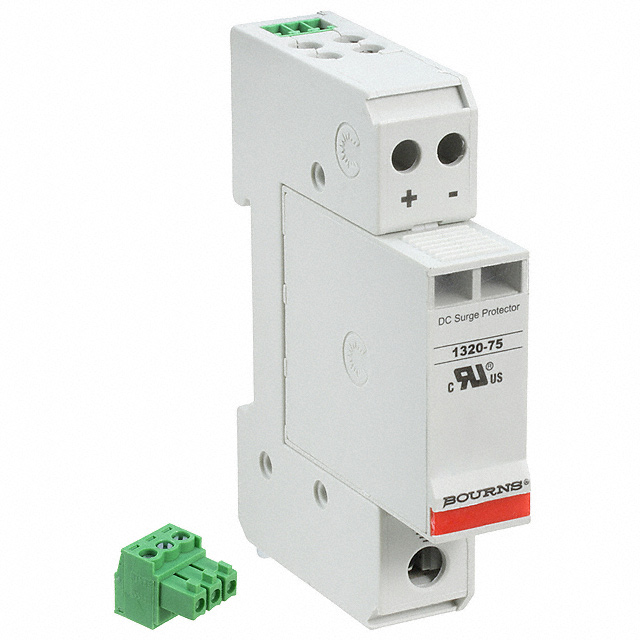

1320-S-75

Active

Bourns Inc.

SPD TYPE 2/TYPE 4 100VDC MCOV

Search across all available documentation for this part.

Active

Bourns Inc.

SPD TYPE 2/TYPE 4 100VDC MCOV

Technical Specifications

Parameters and characteristics for this part

Specification	1320-S-75

Approval Agency	CSA, UR, CE
Current - Discharge (Max) (8/20µS)	40 kA
Current - Discharge (Nom) (8/20µS)	20 kA
Features	Remote Signaling Contacts
Form	Base + Module
Mounting Type	DIN Rail
Number of Poles	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Type	Type 4, Type 2
Voltage - Continuous Operating (Max) (MCOV) [Max]	100 VDC
Voltage - Protection Level (VP) (2416)	390 V

Part	Approval Agency	Form	Type	Voltage - Protection Level (VP) (2416)	Mounting Type	Features	Current - Discharge (Max) (8/20µS) [Max]	Number of Poles	Voltage - Continuous Operating (Max) (MCOV) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Discharge (Nom) (8/20µS)	Current - Discharge (Max) (8/20µS)
Bourns Inc. 1320-S-48	CE CSA UR	Base + Module	Type 2 Type 4	300 V	DIN Rail	Remote Signaling Contacts	30 kA	2	65 VDC	85 °C	-40 °C	15 kA
Bourns Inc. 1320-S-75	CE CSA UR	Base + Module	Type 2 Type 4	390 V	DIN Rail	Remote Signaling Contacts		2	100 VDC	85 °C	-40 °C	20 kA	40 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 85.23

General part information

SPD TYPE 2/TYPE 4 100VDC MCOV
