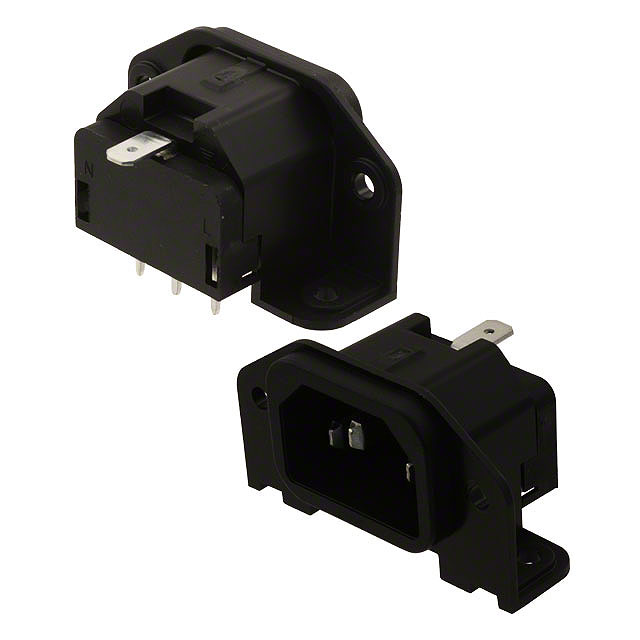

GSP1.9113.1

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	GSP1.9113.1

Accomodates a Fuse	False
Approval Agency	ENEC, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness	3 mm
Panel Thickness	0.118 in
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Accomodates a Fuse	Termination	Approval Agency	Filter Type	Current Rating - Appliance Inlet	Mounting Type	Ingress Protection	Voltage Rating - Appliance Inlet	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Material Flammability Rating	Panel Thickness	Panel Thickness	Connector Style
SCHURTER Inc. GSP1.9113.1		Solder	CCC cURus ENEC	Unfiltered - Commercial	10 A	Panel Mount Flange Through Hole Right Angle	IP40	250 VAC	Male Blades Receptacle	30.3 mm	22.5 mm	Terminating Cover	UL94 V-0	3 mm	0.118 in	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
