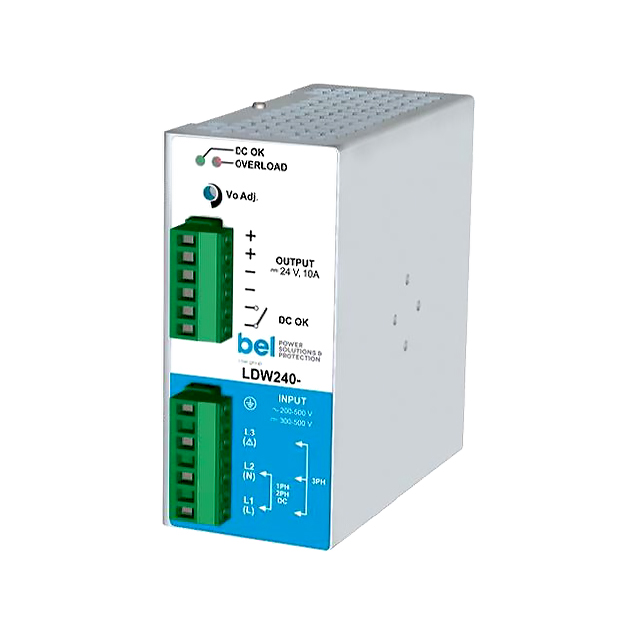

LDW240-72P

Obsolete

EOS Power India Private Ltd

AC/DC DIN RAIL SUPPLY 72V 240W

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC DIN RAIL SUPPLY 72V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	LDW240-72P

AC Voltage - Input [Max]	2 Phase, 550 VAC
AC Voltage - Input [Min]	187 VAC, 1 Phase
Applications	ITE (Commercial)
Current - Output (Max) [Max]	3.5 A
DC Voltage - Input (Max) [Max]	725 V
DC Voltage - Input (Min) [Min]	250 V
Efficiency	92 %
Features	Load Sharing, IP20, Adjustable Output
Input Type	AC or DC
Number of Outputs	1
Power (Watts)	240 W
Size / Dimension [x]	4.33 in
Size / Dimension [x]	110 mm
Size / Dimension [y]	54 mm
Size / Dimension [y]	2.13 in
Size / Dimension [z]	4.53 "
Size / Dimension [z]	115 mm
Voltage - Isolation	4.2 kV
Voltage - Output 1	72 V

Part	Input Type	Current - Output (Max) [Max]	Power (Watts)	Efficiency	Number of Outputs	Voltage - Isolation	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Applications
EOS Power India Private Ltd LDW240-72P	AC or DC	3.5 A	240 W	92 %	1	4.2 kV	72 V	1 Phase 187 VAC	2 Phase 550 VAC	Adjustable Output IP20 Load Sharing	4.53 "	54 mm	4.33 in	2.13 in	115 mm	110 mm	250 V	725 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 72V 240W

Technical documentation and resources

No documents available
