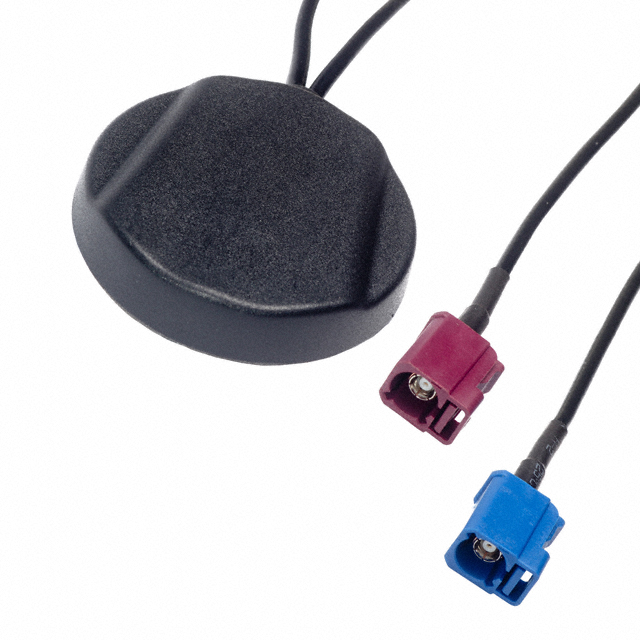

MA.203W.AB.009
ActiveTAOGLAS
RF ANT 860MHZ/920MHZ MOD FAKRA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA.203W.AB.009 |
|---|---|
| Antenna Type | Module |
| Applications | UMTS, GSM, GPS, CDMA |
| Features | LNA |
| Frequency (Center/Band) | 1.9 GHz, 1.8 GHz, 860 MHz, 920 MHz |
| Frequency Range [Max] | 1.99 GHz, 1.88 GHz, 896 MHz, 960 MHz |
| Frequency Range [Min] | 1.85 GHz, 824 MHz, 1.71 GHz, 880 MHz |
| Gain | -3 dBic |
| Height (Max) [Max] [z] | 16 mm |
| Height (Max) [Max] [z] | 0.63 in |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Number of Bands | 4 |
| RF Family/Standard | Cellular, Navigation |
| Termination | Fakra, SMB |
| VSWR | 1.92 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 27.80 | |
Description
General part information
MA.203 Series
RF ANTENNA CDMA, GPS, GSM, UMTS Module SMB, Fakra Adhesive
