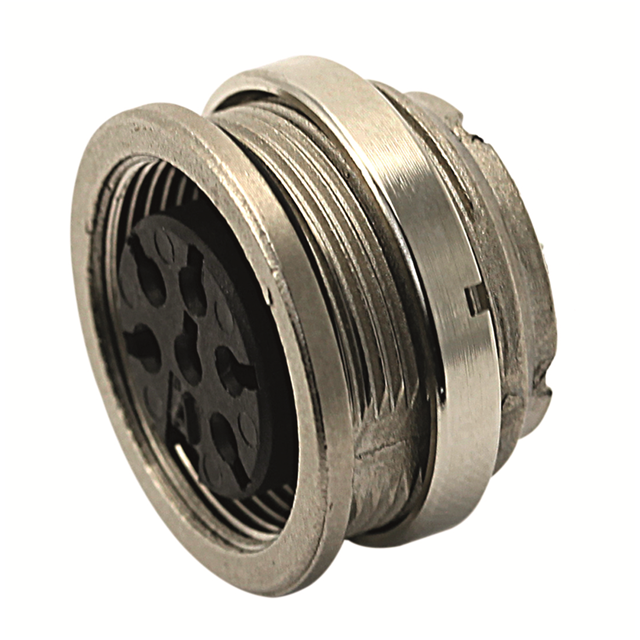

T 3653 550

Active

Amphenol Sine Systems Corp

FRONT MOUNTING FEMALE RECEPTACLE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FRONT MOUNTING FEMALE RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3653 550

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Housing Color	Silver
Includes	1 Nut, 1 Connector
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	14
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-14
Shielding	Shielded
Type	For Female Sockets

Part	Number of Positions	Note	Insert Material	Shell Material	Orientation	Mounting Feature	Connector Type	Shielding	Housing Color	Includes	Contact Type	Shell Finish	Type	Contact Size	Material Flammability Rating	Ingress Protection	Shell Size - Insert	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Sine Systems Corp T 3653 550	14	Contacts Not Included	Thermoplastic	Die Cast	Keyed	Bulkhead - Rear Side Nut	Receptacle Housing	Shielded	Silver	1 Connector 1 Nut	Crimp	Nickel	For Female Sockets	1 mm	UL94 V-0	IP40	M16-14	Circular	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.17

General part information

14 Position Circular Connector Receptacle Housing Panel Mount
