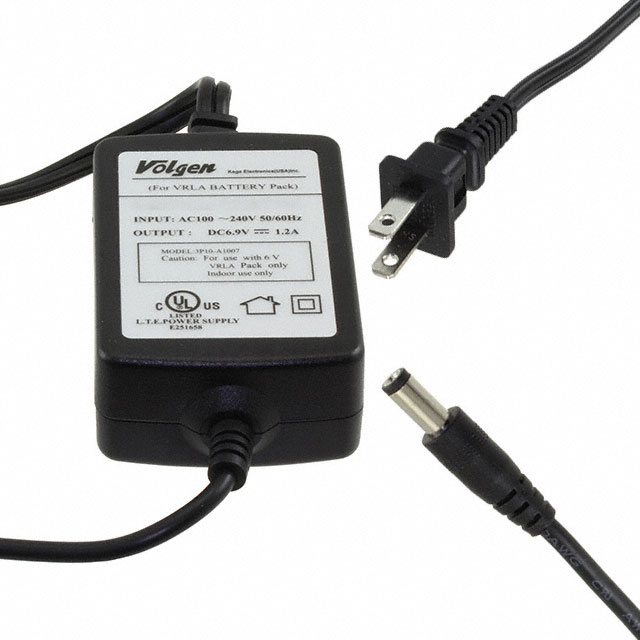

LABC7-6V
ActiveVolgen + Furuno
BATT CHARGER DESKTOP 7.4V 1.2A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LABC7-6V
ActiveVolgen + Furuno
BATT CHARGER DESKTOP 7.4V 1.2A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LABC7-6V |
|---|---|
| Battery Cell Size | 6 V |
| Battery Chemistry | Lead Acid |
| Charge Current - Max [Max] | 1.2 A |
| Mounting Type | Desktop |
| Number of Cells | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Size / Dimension [x] | 3.19 in |
| Size / Dimension [x] | 81 mm |
| Size / Dimension [y] | 51 mm |
| Size / Dimension [y] | 2.01 in |
| Size / Dimension [z] | 1.1 in |
| Size / Dimension [z] | 28 mm |
| Termination Style | Female |
| Termination Style [diameter] | 2.1 mm, 5.5 mm |
| Termination Style [x] | 12 mm |
| Type | Desktop |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Nominal | 7.4 V |
| Weight | 149.69 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 21.00 | |
Description
General part information
LABC7 Series
Desktop Battery Charger 7.4V 1.2A 6V
