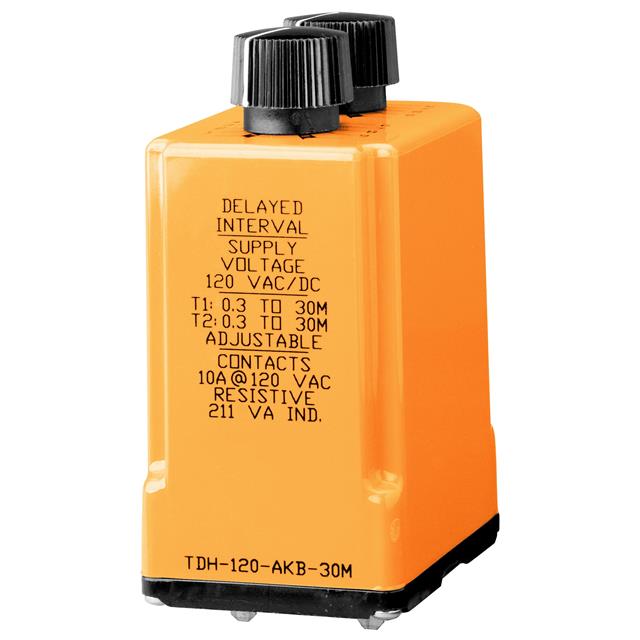

TDH-120-A-K-B-30M
ActiveATC-Diversified Electronics
RELAY TIME DELAY 30MIN 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDH-120-A-K-B-30M
ActiveATC-Diversified Electronics
RELAY TIME DELAY 30MIN 10A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDH-120-A-K-B-30M |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 10 A |
| Delay Time [Max] | 30 Min |
| Delay Time [Min] | 18 Sec |
| Function | Interval |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 239.58 | |
Description
General part information
TDH-120 Series
Interval Time Delay Relay DPDT (2 Form C) 18 Sec ~ 30 Min Delay 10A @ 250VAC/24VDC Socketable
Documents
Technical documentation and resources
