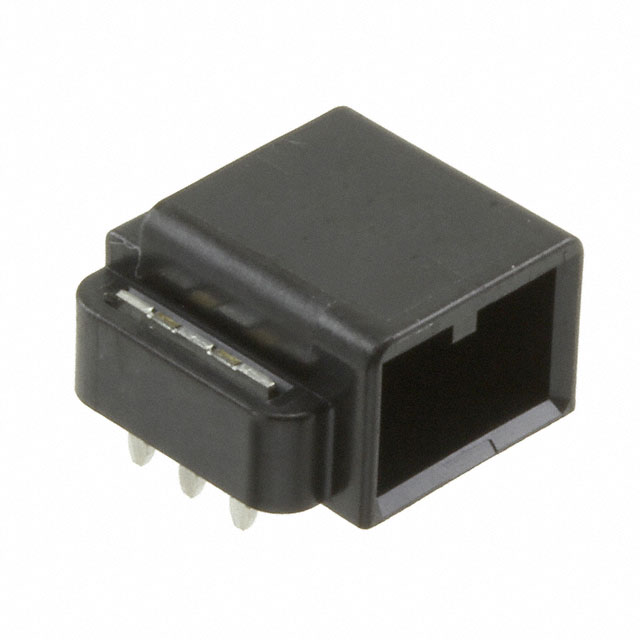

GT8EA-2P-2H
ObsoleteHirose Electric USA, Inc.
CONN HEADER SMD R/A 2POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GT8EA-2P-2H
ObsoleteHirose Electric USA, Inc.
CONN HEADER SMD R/A 2POS 2MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GT8EA-2P-2H |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 6.91 mm |
| Insulation Height [z] | 0.272 " |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GT8EA Series
Connector Header Surface Mount, Right Angle 2 position 0.079" (2.00mm)
