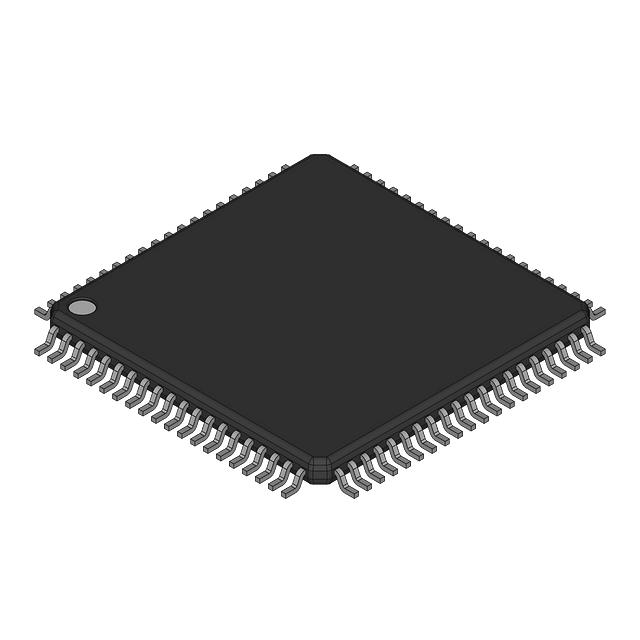

SN74ABT7820-25PH

Obsolete

Texas Instruments

IC FIFO ASYNC 512X18X2 80QFP

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC FIFO ASYNC 512X18X2 80QFP

Technical Specifications

Parameters and characteristics for this part

Part	Bus Directional	Current - Supply (Max) [Max]	Access Time	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Memory Size	Operating Temperature [Max]	Package / Case	Function	Supplier Device Package
Texas Instruments SN74ABT7820-15PN	Bi-Directional	95 mA	12 ns	Surface Mount	4.5 V	5.5 V	67 MHz	18 K	70 °C	80-LQFP	Asynchronous
Texas Instruments SN74ABT7820-25PN	Bi-Directional	95 mA	15 ns	Surface Mount	4.5 V	5.5 V	40 MHz	18 K	70 °C	80-LQFP	Asynchronous
Texas Instruments SN74ABT7820-15PH	Bi-Directional	95 mA	12 ns	Surface Mount	4.5 V	5.5 V	67 MHz	18 K	70 °C	80-BQFP	Asynchronous	80-QFP (14x20)
Texas Instruments SN74ABT7820-25PH	Bi-Directional	95 mA	15 ns	Surface Mount	4.5 V	5.5 V	40 MHz	18 K	70 °C	80-BQFP	Asynchronous	80-QFP (14x20)
Texas Instruments SN74ABT7820-30PN	Bi-Directional	95 mA	17 ns	Surface Mount	4.5 V	5.5 V	33.3 MHz	18 K	70 °C	80-LQFP	Asynchronous

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Asynchronous FIFO 18K (512 x 18 x 2) Bi-Directional 40MHz 15ns 80-QFP (14x20)
