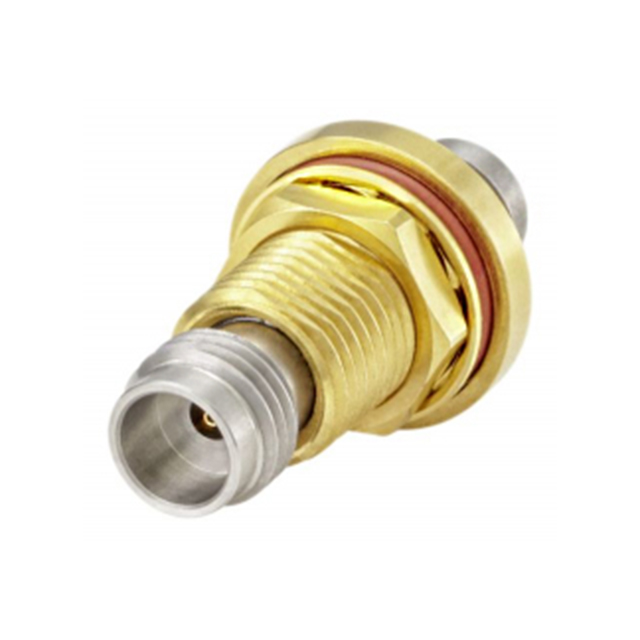

08K641-KH0S3
ActiveRosenberger
RF ADAPTERS - IN SERIES ADAPTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
08K641-KH0S3
ActiveRosenberger
RF ADAPTERS - IN SERIES ADAPTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 08K641-KH0S3 |
|---|---|
| Adapter Series | RPC-1.85 to RPC-1.85 |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 1.85mm Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, 1.85mm Jack |
| Dielectric Material | Polystyrene (PS) |
| Frequency - Max [Max] | 70 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.84 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 707.87 | |
Description
General part information
08K641 Series
Adapter Coaxial Connector 1.85mm Jack, Female Socket To 1.85mm Jack, Female Socket 50 Ohms
