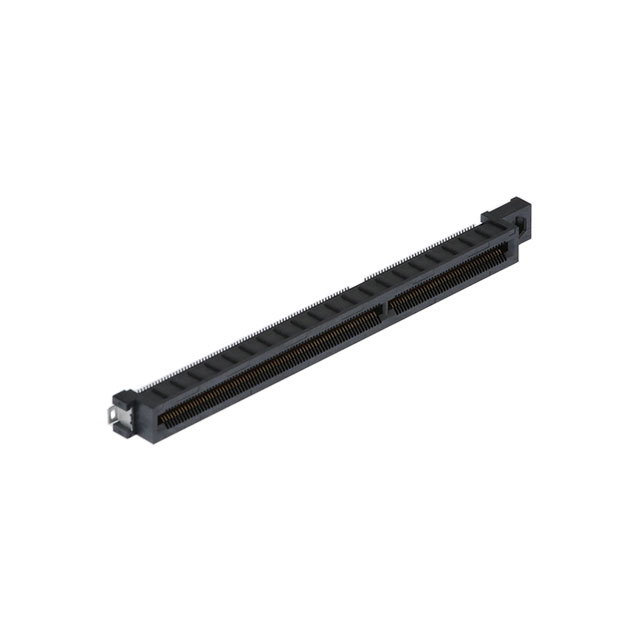

SET023023101011

Active

Amphenol ICC (Commercial Products)

CONN EDGE DUAL FMALE 230P 0.026

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN EDGE DUAL FMALE 230P 0.026

Technical Specifications

Parameters and characteristics for this part

Specification	SET023023101011

Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Board Guide, Board Lock
Flange Feature	Unthreaded, Top Mount Opening
Flange Feature [diameter]	0.147 in
Flange Feature [diameter]	3.74 mm
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Surface Mount
Number of Positions	230
Number of Positions/Bay/Row [custom]	40
Number of Positions/Bay/Row [custom]	75
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm
Read Out	Dual
Termination	Solder

Part	Termination	Material - Insulation	Color	Pitch [x]	Pitch [x]	Card Type	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Gender	Number of Rows	Contact Material	Features	Read Out	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Amphenol ICC (Commercial Products) SET023023101011	Solder	Thermoplastic	Black	0.026 in	0.65 mm	Non Specified - Dual Edge	40	75	Cantilever	Top Mount Opening Unthreaded	0.147 in	3.74 mm	Surface Mount	Female	2	Copper Alloy	Board Guide Board Lock	Dual	Gold	0.76 Ám	30 Áin	230

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

230 Position Female Connector Non Specified - Dual Edge Gold 0.026" (0.65mm) Black
