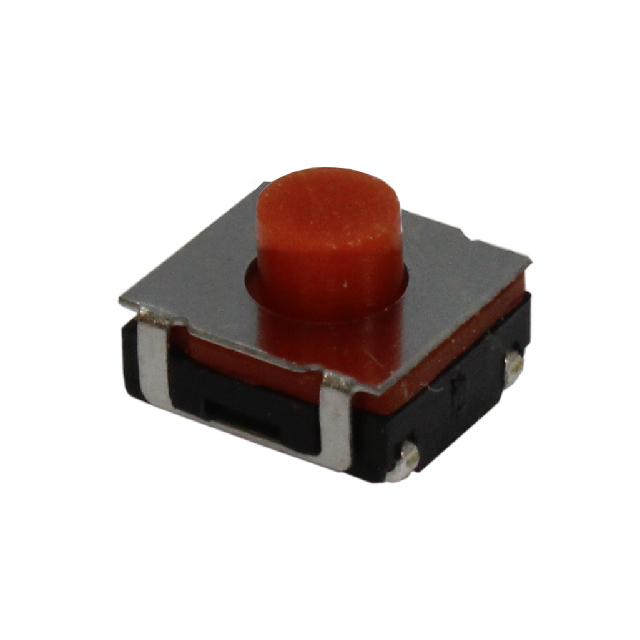

CS33043.4J
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 50V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS33043.4J
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS33043.4J |
|---|---|
| Actuator Height off PCB, Vertical | 3.4 mm |
| Actuator Material | Rubber |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 50 VDC, 0.05 A |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6.4 mm |
| Outline [y] | 6.25 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.39 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.41 | |||
| 25 | $ 0.39 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| Tape & Reel (TR) | 1500 | $ 0.18 | ||
| 3000 | $ 0.18 | |||
Description
General part information
CS33043 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
