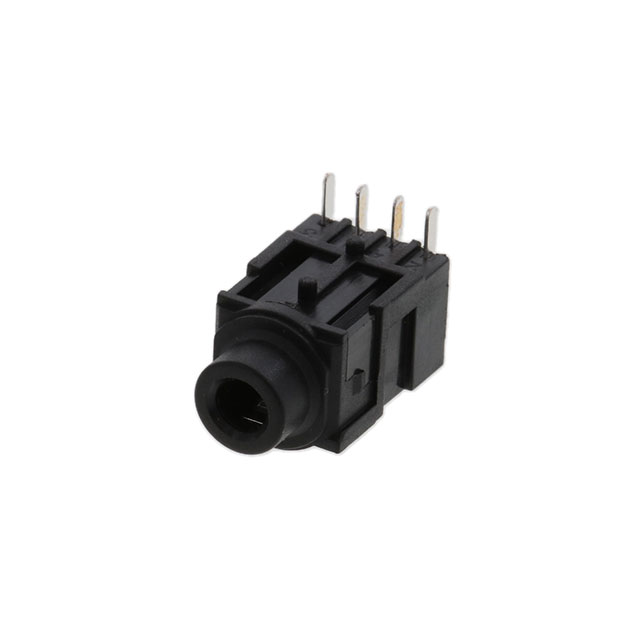

ASJ-171B-M-WP
ActiveAdam Tech
AUDIO JACK, WATERPROOF
Deep-Dive with AI
Search across all available documentation for this part.
ASJ-171B-M-WP
ActiveAdam Tech
AUDIO JACK, WATERPROOF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASJ-171B-M-WP |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide, Cover |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 4 |
| Number of Positions/Contacts [custom] | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.56 | |
| 10 | $ 2.72 | |||
| 25 | $ 2.45 | |||
| 40 | $ 2.32 | |||
| 80 | $ 2.15 | |||
| 230 | $ 1.92 | |||
| 440 | $ 1.79 | |||
| 945 | $ 1.66 | |||
| 2400 | $ 1.51 | |||
Description
General part information
ASJ-171 Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
