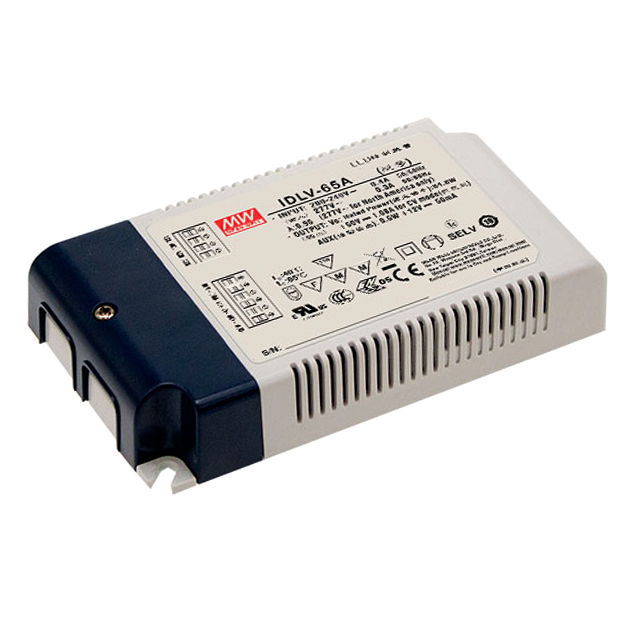

IDLV-65A-24

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 2.4A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 2.4A

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Termination Style	Voltage - Isolation	Voltage - Input (Min) [Min]	Efficiency	Topology	Current - Output (Max) [Max]	Approval Agency	Number of Outputs	Type	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]
MEAN WELL USA Inc. IDLV-65-24	24 V	Chassis Mount	85 °C	-20 C	Analog PWM	Terminal Block	3750 V	180 VAC	87 %	AC DC Converter	2.4 A	CB CCC CE cURus ENEC	1	Constant Voltage	OVP SCP	5.12 "	2.95 in	130 mm	0.98 in	75 mm	25 mm	295 VAC
MEAN WELL USA Inc. IDLV-65A-24	24 V	Chassis Mount	85 °C	-20 C	Analog PWM	Terminal Block	3750 V	180 VAC	87 %	AC DC Converter	2.4 A	CB CCC CE cURus ENEC	1	Constant Voltage	OCP SCP	5.12 "	2.95 in	130 mm	0.98 in	75 mm	25 mm	295 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.18

General part information

2.4A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources
