X9448WV24-2.7

Obsolete

Renesas Electronics Corporation

IC DGTL POT 10KOHM 64TAP 24TSSOP

Search across all available documentation for this part.

Obsolete

Renesas Electronics Corporation

IC DGTL POT 10KOHM 64TAP 24TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	X9448WV24-2.7

Configuration	Potentiometer
Features	Selectable Address
Interface	I2C
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Number of Circuits	2
Number of Taps	64
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C

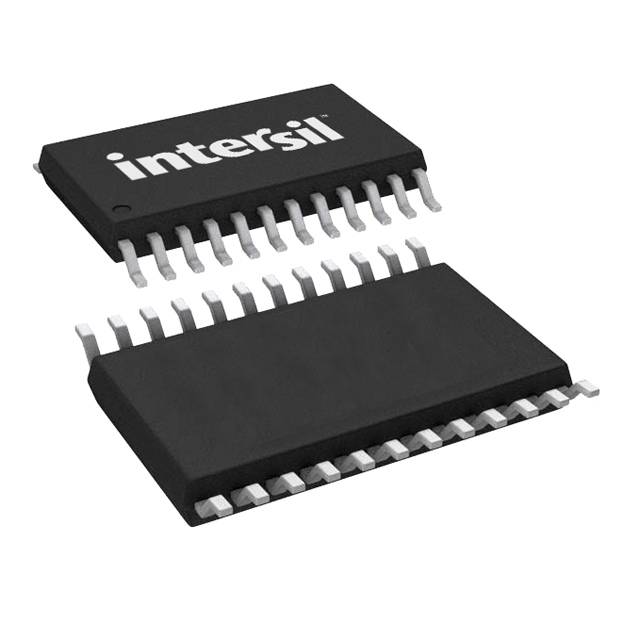

Package / Case	24-TSSOP
Package / Case	0.173 in, 4.4 mm
Resistance - Wiper (Ohms) (Typ)	100 Ohms
Resistance (Ohms)	10k
Supplier Device Package	24-TSSOP
Taper	Linear
Temperature Coefficient (Typ)	300 ppm/°C
Tolerance	20 %
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	±2.7V

Part	Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Temperature Coefficient (Typ)	Number of Taps	Resistance - Wiper (Ohms) (Typ)	Interface	Memory Type	Resistance (Ohms)	Taper	Package / Case	Package / Case	Tolerance	Features	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Circuits
Renesas Electronics Corporation X9448WV24-2.7	Potentiometer	±2.7V	5.5 V	Surface Mount	300 ppm/°C	64	100 Ohms	I2C	Non-Volatile	10k	Linear	24-TSSOP	0.173 in 4.4 mm	20 %	Selectable Address	70 °C	0 °C	24-TSSOP	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Digital Potentiometer 10k Ohm 2 Circuit 64 Taps I2C Interface 24-TSSOP
