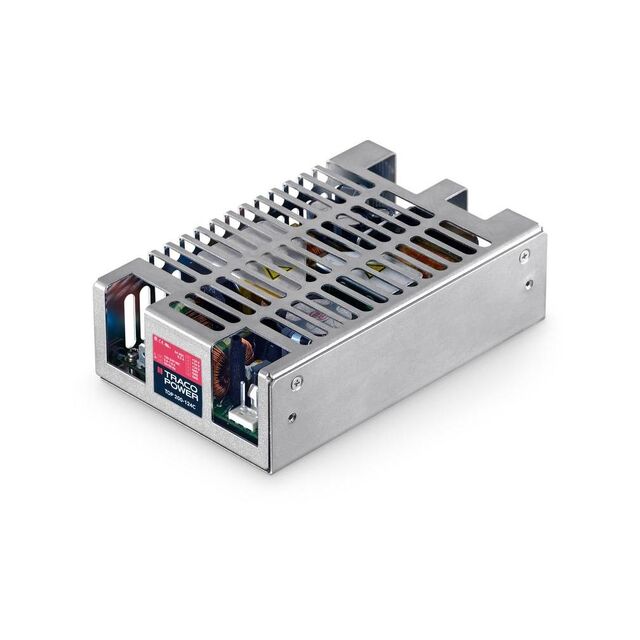

TOP 200-148C
ActiveTraco Power
AC/DC CONVERTER 48V 202W
Deep-Dive with AI
Search across all available documentation for this part.
TOP 200-148C
ActiveTraco Power
AC/DC CONVERTER 48V 202W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TOP 200-148C |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | GS, CB, SIQ, CSAus, CE |
| Current - Output 1 | 4.2 A |
| Efficiency | 95 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 76.2 mm, 3 " |
| Size / Dimension [z] | 1.34 in, 34 mm |
| Type | Open Frame |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TOP 200 Series
Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
