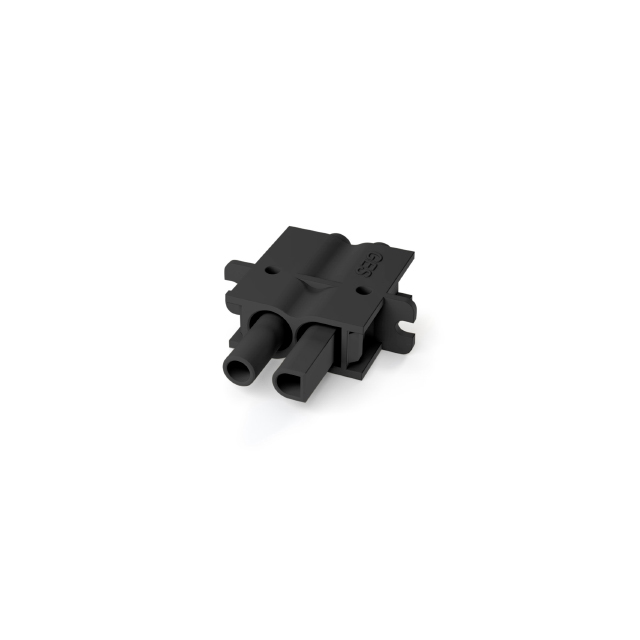

5000464
ActiveGES High Voltage
VP-CL-2HV-BU AWG 14 AG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5000464
ActiveGES High Voltage
VP-CL-2HV-BU AWG 14 AG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5000464 |
|---|---|
| Cable Opening [custom] | 0.157 in |
| Cable Opening [custom] | 4 mm |
| Color | Black |
| Connector Type | Receptacle, Female Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 13 A |
| Fastening Type | Snap In, Latch Holder |
| Features | Heat Shrink, High Voltage Connector |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Brackets |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Number of Positions | 2 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shielding | Unshielded |
| Termination | Solder, Crimp |
| Voltage Rating | 13000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 2 | $ 39.29 | |
| 10 | $ 37.33 | |||
| 26 | $ 35.36 | |||
| 50 | $ 33.39 | |||
| 100 | $ 31.43 | |||
| 250 | $ 29.47 | |||
Description
General part information
5000464
2 Position Circular Connector Receptacle, Female Pins Crimp, Solder
