P4FL5.0A-AU_R1_000A1
ActivePanjit International Inc.
SURFACE MOUNT TRANSIENT VOLTAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P4FL5.0A-AU_R1_000A1 |
|---|---|
| Current - Peak Pulse (10/1000µs) | 43.5 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

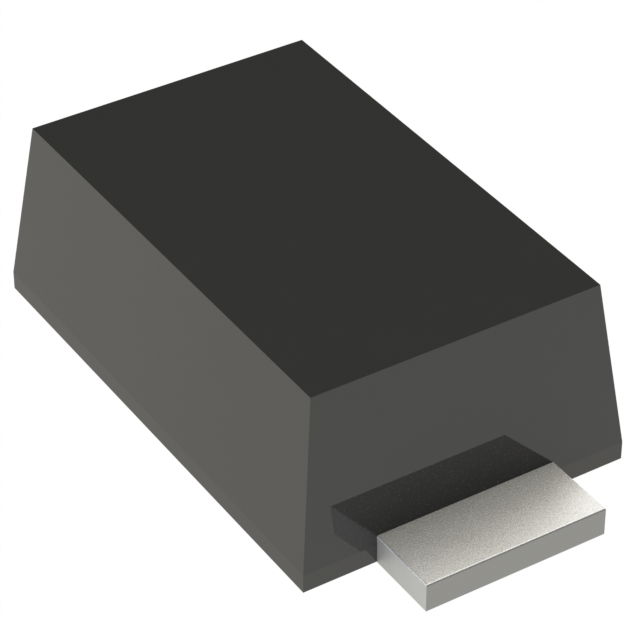

| Package / Case | SOD-123F |
| Power - Peak Pulse | 400 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | SOD-123FL |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 6.4 V |
| Voltage - Clamping (Max) @ Ipp | 9.2 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.41 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.12 | |||
| 21000 | $ 0.12 | |||
| 30000 | $ 0.12 | |||
| 75000 | $ 0.11 | |||
Description
General part information
P4FL5.0A-AU_R1_000A1
9.2V Clamp 43.5A Ipp Tvs Diode Surface Mount SOD-123FL
