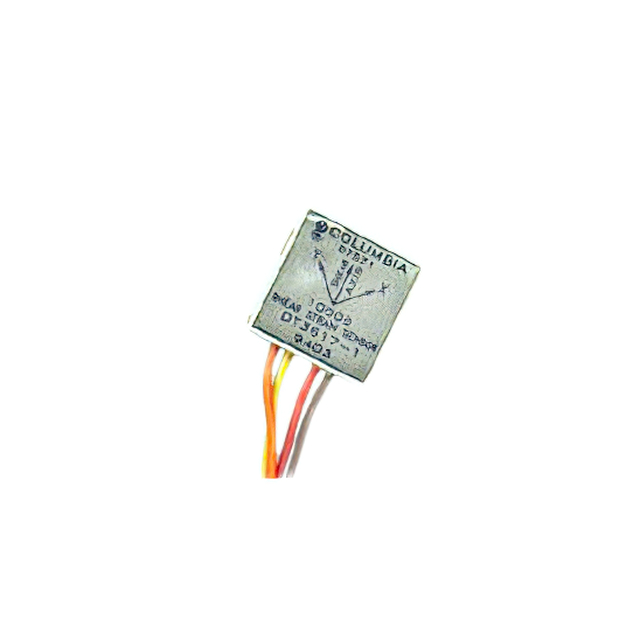

DT 3617-1
ActiveColumbia Research Laboratories Inc
STRAIN SENSOR/SHEAR STRAIN MEASU
Deep-Dive with AI
Search across all available documentation for this part.
DT 3617-1
ActiveColumbia Research Laboratories Inc
STRAIN SENSOR/SHEAR STRAIN MEASU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DT 3617-1 |
|---|---|
| Length - Overall | 14.2 mm |
| Length - Overall | 0.56 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pattern Type | Torque, Shear |
| Resistance | 1000 Ohms |
| Resistance Tolerance | 2 % |
| Width - Overall [y] | 0.56 in |
| Width - Overall [y] | 14.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DT 3617-1
Shear/Torque Strain Gauge
Documents
Technical documentation and resources
No documents available
