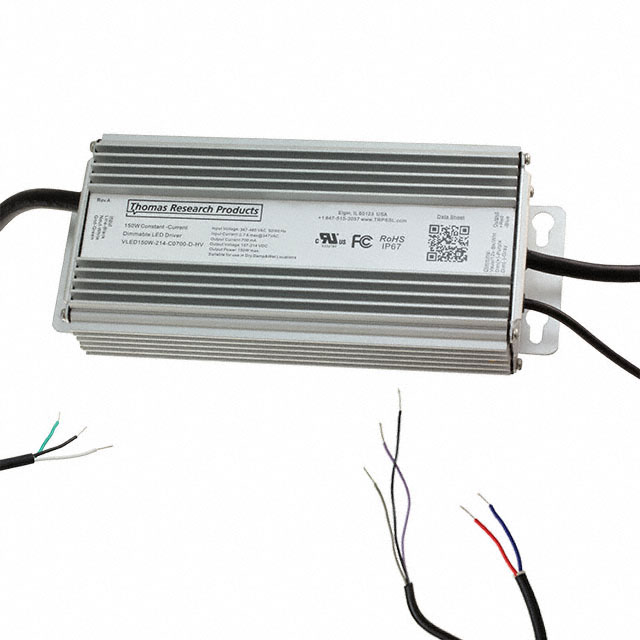

VLED150W-214-C0700-D-HV
ObsoleteThomas Research Products
LED DRVR CC AC/DC 107-214V 700MA
Deep-Dive with AI
Search across all available documentation for this part.
VLED150W-214-C0700-D-HV
ObsoleteThomas Research Products
LED DRVR CC AC/DC 107-214V 700MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VLED150W-214-C0700-D-HV |
|---|---|
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 700 mA |
| Dimming | Analog |
| Efficiency | 91 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 150 W |
| Ratings | IP67 |
| Size / Dimension [x] | 7.24 in |
| Size / Dimension [x] | 184 mm |
| Size / Dimension [y] | 88 mm |
| Size / Dimension [y] | 3.46 " |
| Size / Dimension [z] | 1.71 in |
| Size / Dimension [z] | 43.5 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 512 VAC |
| Voltage - Input (Min) [Min] | 312 VAC |
| Weight | 2.8 lbs |
| Weight | 1.3 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 83.27 | |
| 5 | $ 77.24 | |||
| 10 | $ 74.78 | |||
| 25 | $ 71.64 | |||
| 50 | $ 69.36 | |||
Description
General part information
VLED150W-214-C0700-D-HV
700mA 107 ~ 214V Constant Current LED Driver AC DC Converter Topology 1 Output
Documents
Technical documentation and resources
